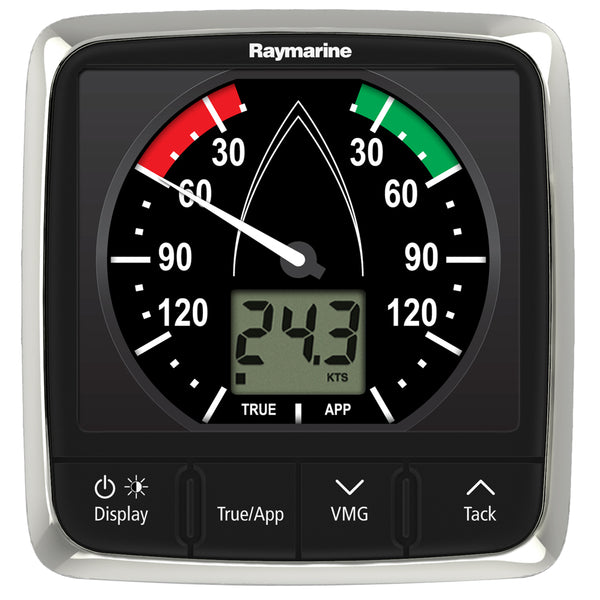

Raymarine i60 Wind Display System

Description

i60 Wind Wireless Instrument Display (E70061) by Raymarine. The all-new i60 Instruments from Raymarine offer boaters an excellent combination of great looks, high performance and extreme value. Designed to accommodate either stand-alone or fully integrated installations, the i60 instruments feature Raymarine's exclusive SeaTalkNG networking for simple installation and bullet-proof reliability.

Features

• Alarms for high/low apparent wind angle, low true wind speed, and maximum true wind speed
• Apparent wind display and True wind when integrated with a compass or autopilot, and speed instrument
• Large, crisp LCD displays with high contrast for excellent visibility
• Red backlighting for night-time visibility
• Sea Talk and Sea Talk-1 networking for maximum flexibility
• Fully compatible with i70, p70, and p70R color instruments and autopilots

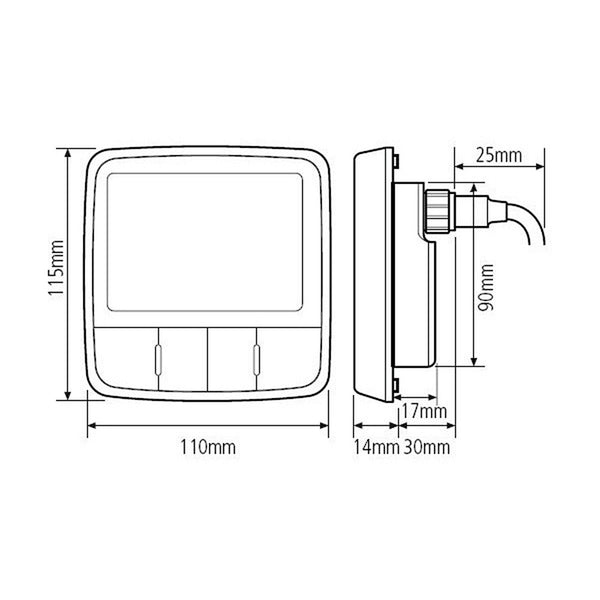

• 110mm x 115mm footprint is identical to older Raymarine ST60+ instrumentation making upgrading easy

Specifications

• Nominal Voltage: 12VDC
• Operating Voltage Range: 10 - 16VDC
• Power Consumption: typically <1W (display only) and 2.4W maximum with transducer connected
• Current Consumption: 45 to 65mA (display only) and 200mA maximum with transducer connected
• Operating Temperature range: -20degreeC to +55degreeC
• Storage Temperature: -30degreeC to +70degreeC
• Relative Humidity: up to 93%
• Waterproofing standard: IPX6
• Connections: 2 x SeaTalkng and transducers Compatible with marine industry CAN systems
• Conformance: Europe 2004/108/EC

Includes

• Instrument Display
• Suncover
• Front bezel
• Gasket
• SeaTalkng spur cable
• SeaTalkng blanking plug
• 4 x fixing screws
• Documentation
