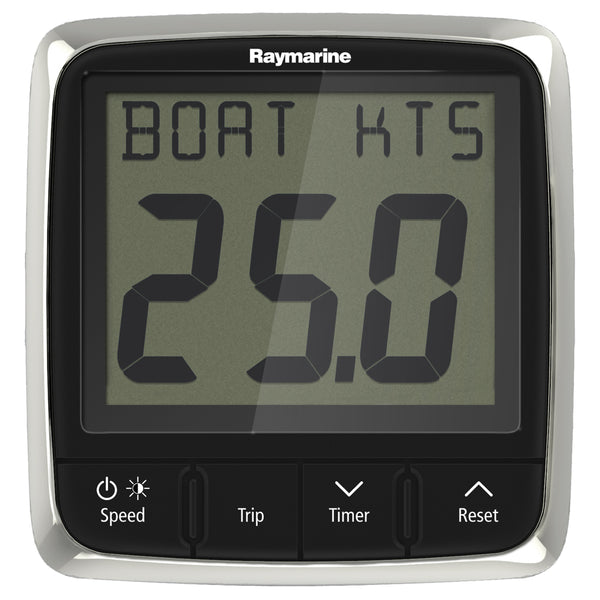

Raymarine i50 Speed Display System

Description

i50 Speed Wired Instrument Display by Raymarine. The Raymarine i50 Speed Display System offers easy-to-read displays of boat speed through water, GPS speed over ground (SOG), velocity made good (VMG), average speed, and max speed, distance log, trip log, and water temperature. i50 Speed also includes a count up timer, and 2 race-start timers.

Features

• Ultra-modern design complements Raymarine's latest a-Series, c-Series and e-Series Multifunction display and instrument systems
• Large, crisp LCD displays with high contrast for excellent visibility
• Red backlighting for outstanding night-time visibility
• SeaTalkNG and SeaTalk-1 Networking for maximum flexibility
• Fully compatible with i70, p70 and p70R Color Instruments and Autopilots
• 110mm x 115mm footprint is identical to older Raymarine ST60+ instrumentation making upgrading easy
• Engineered to high standards
• High-grade design delivers extended lifespan
• Made with premium materials

Specifications

• Nominal Voltage: 12VDC
• Operating Voltage Range: 10 - 16VDC
• Power Consumption: typically <1W (display only) and 2.4W
• maximum with transducer connected
• Current Consumption: 45 to 65mA (display only) and 200mA
• maximum with transducer connected
• Operating Temperature range: -20°C to +55°C
• Storage Temperature: -30°C to +70°C
• Relative Humidity: up to 93%
• Waterproofing standard: IPX6
• Connections: 2 x SeaTalkng and transducers
• Compatible with marine industry CAN systems
• Conformance: Europe 2004/108/EC
