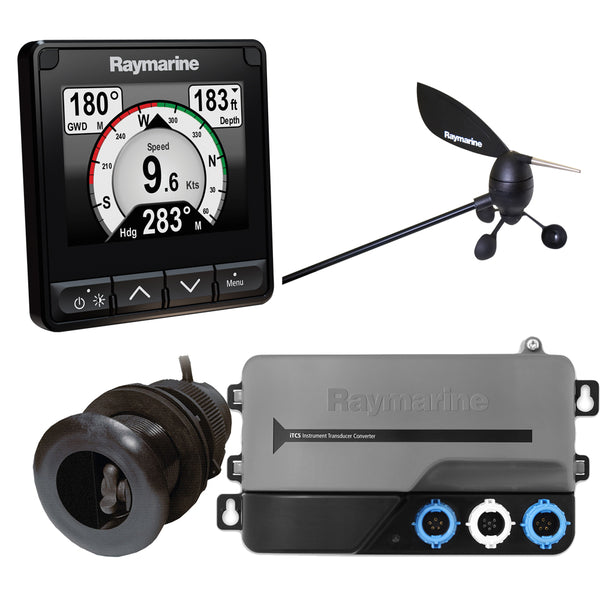

Raymarine i70s System Pack, Wind, Depth, Speed

Description

i70 Wind/Speed/Depth/Temperature Wireless Instrument Kit with Thru-Hull Transducers (T70226) by Raymarine.

Features

• Digital and graphical data views of wind, depth, speed, AIS targets, engine, fuel, and GPS navigation
• 4" oversized ultra bright sunlight viewable color display with LED Backlighting
• 30% larger than previous generation instruments displays
• Very low power consumption: 150mA / 1.6W typical
• Consumes 27% less power than previous generation color instruments
• Easy-to-install using a simple circular, hole saw cut
• iTC5 Transducer Converter E70010
• Wind Vane E22078
• Standard Forward Wind Transducer, Standard Length: 14 1/2" Includes 100ft. Cable
• DST800 Nylon Thru hull A22154

Specifications

• Nominal Voltage: 12VDC
• Voltage Range: 10.7 to 16 VDC
• Mounting method: Front Mounted and circular cut
• LCD Brightness: 700cd/m2
• Display: TFT LCD 16 bit color (64K colors), 320 x 240 pixels
• Color palettes: Four color pallettes- two day, inverse and red/black
• Operating Temperature: -25degree to 55 degree(-13degree F to 131degree F)
• Storage Temperature: -30degree to 70degree (-22degreeF to 158 degreeF)
• Relative Humidity and Waterproofing: 93% max and IPX6
• Connections: SeaTalkng (x2)degree- compliant with NMEA2000 and
• SeaTalk specifications. Compatible with marine industry CAN systems
• Conformance: Europe 2004/108/EC, Australia and New Zealand C-Tick compliance level 2
• Extensive Language support: 20 languages available

Includes

• Color Instrument Display
• Wind and DST transducers
• iTC-5 transducer converter
• 9m backbone cable
• Power Cable
• 1 Backbone Terminator
• 1 Inline Terminator
