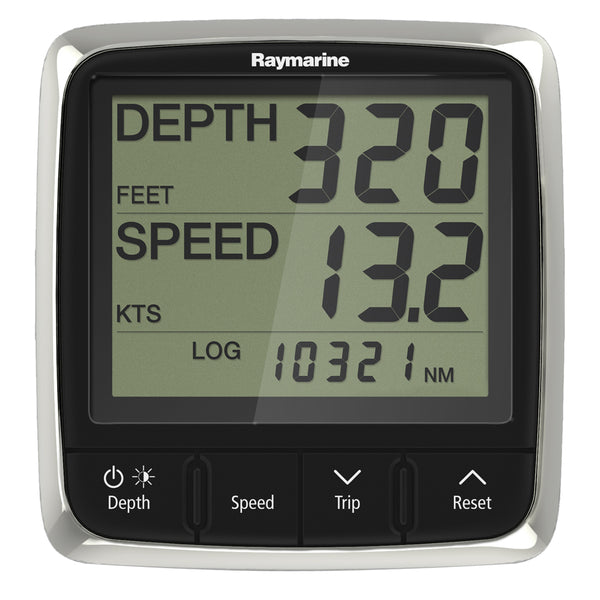

Raymarine i50 Tridata Display

Description

i50 Speed/Depth/Temperature Wired Instrument Display by Raymarine. The Raymarine i50 Tridata Display is a convenient 3-line instrument that combines the functions of the Speed and Depth Instruments into one display. This makes the i50 Tridata ideal for installations on helms where space is a premium, or as a depth and speed repeater solution for other locations on the boat.

Features

• Ultra-modern design complements Raymarine's latest a-Series, c-Series and e-Series Multifunction display and instrument systems
• Large, crisp LCD displays with high contrast for excellent visibility
• Red backlighting for outstanding night-time visibility
• SeaTalkNG and SeaTalk-1 Networking for maximum flexibility
• Fully compatible with i70, p70 and p70R Color Instruments and Autopilots
• 110mm x 115mm footprint is identical to older Raymarine ST60+ instrumentation making upgrading easy
• Engineered to high standards
• High-grade design delivers extended lifespan
• Made with premium materials

Specifications

• Nominal Voltage: 12VDC
• Operating Voltage Range: 10 - 16VDC
• Power Consumption: typically <1W (display only) and 2.4W maximum with transducer connected
• Current Consumption: 45 to 65mA (display only) and 200mA maximum with transducer connected
• Operating Temperature range: -20degreeC to +55degreeC
• Storage Temperature: -30degreeC to +70degreeC
• Relative Humidity: up to 93%
• Waterproofing standard: IPX6
• Connections: 2 x SeaTalkng and transducers Compatible with marine industry CAN systems
• Conformance: Europe 2004/108/EC

Includes

• Instrument Display
• Suncover
• Front bezel
• Gasket
• SeaTalkng spur cable
• SeaTalkng blanking plug
• 4 x fixing screws
• Documentation
