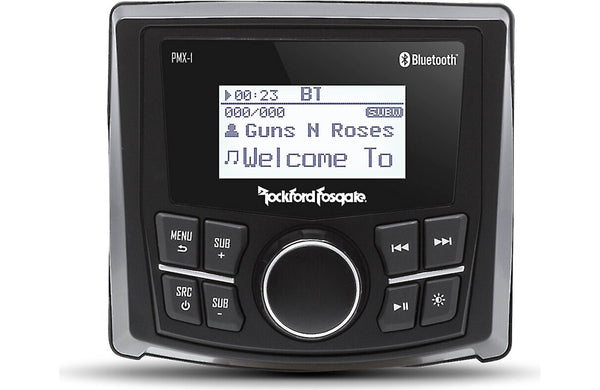

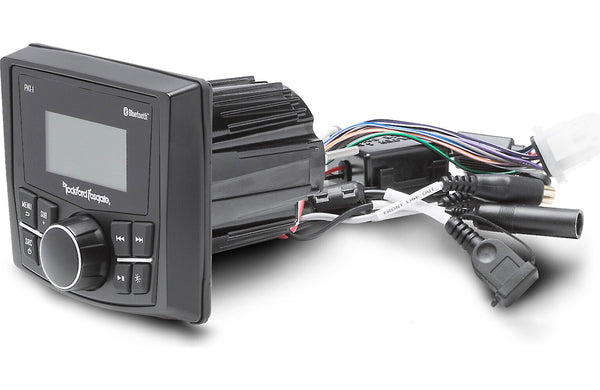

Rockford Fosgate Marine Digital Media Receiver w/ 2.3" LCD Display
Description
The PMX-1 features a scratch resistant wet bonded display, superior Bluetooth® audio, AUX and USB inputs. The Element Ready™ design also provides protection against water, dust, and UV rays.
The PMX-1 features a 9H tempered glass screen optically bonded which allows for optimized viewing of the dot matrix display under all lighting and viewing conditions. The superior Bluetooth® audio features A2DP and AVRCP for better range, easier device pairing and glitch free wireless audio streaming. The flexible AUX and USB inputs enable convenient access to various audio playback formats and charging of your mobile devices.
Key Points
- Marine digital media receiver with AM/FM/WB tuner (does not play CDs)
- Built-in amplifier (25 watts RMS CTA-2006/50 peak x 4 channels)
- Built-in Bluetooth for music streaming (will not make calls)
- 2.3" dot matrix display
- Fits into a standard 3" gauge opening
Features
- Wet bonded 2.3" Full Dot Matrix LCD Display
- 9H Tempered Glass Screen
- Compatible with PMX-BTUR Steering Wheel Remote
- AUX and USB Inputs with USB Charging
- A2DP and AVRCP Bluetooth® Wireless Streaming
- Independent Subwoofer Level Control
- 7-Band Graphic EQ + PEQ
- Voltage gauge with Low voltage Warning
- AM/FM/WB Tuner
- Selectable HP / LP / AP Crossovers with Selectable Slope 12 / 24 dB/Oct
- Multi Region Radio Frequencies
- IP6 Marine Grade Front Panel
- FCC, CE and EN60945 Certified
- 2-Year Warranty
Specifications
Expandability
AUX Input | RCA (rear) |
Audio/video Input | --- |
USB Input | Rear |
USB Port Power | 1A |
Backup Camera Input | No |
Second Camera Input | No |
CarPlay | No |
Android Auto | No |
Siri Control | No |
Alexa Voice Control | N |
Android Control | Yes |
Memory Card Slot | USB memory |
Bluetooth Compatible | Built-in |
Satellite Radio Ready | No |
HD Radio | No |
Navigation | --- |
iPod Compatibility | |
Full size | No |
Nano | No |
Touch | No |
iPhone | No |
General
RMS Power (CTA-2006) | 25 watts |
RMS Power (Manufacturer) | --- |
Peak Output | 50 watts |
RMS Power Bandwidth | 20-20kHz |
Preamp Outputs | 4-channel |
Sub Preamp Outputs | No |
Switchable Rear Preamp Outputs | Yes |
Video Screen | No |
Navigation App Compatible (iOS) | |
Navigation App Compatible (Android) | |
Preamp Voltage | 4 volts |
Screen Size | 0 |
Display Color | White |
Key Button Color | White |
EQ Bands | 7 |
Wireless Remote | No |
Steering Wheel Control Compatible | No |
Parts Warranty | 2 Years |
Labor Warranty | 2 Years |
Tuner
FM Sensitivity | --- |
European Tuning | Yes |
Seek/Scan | Seek |
Radio Data System | No |
File Playback
Music File Playback | MP3, WMA |
High-res Playback | N |
Second Camera Input Lane Watch | N |
