Rockford Fosgate Punch Marine/Motorsport Hide-Away AM/FM/WP Digital Media Receiver

Description

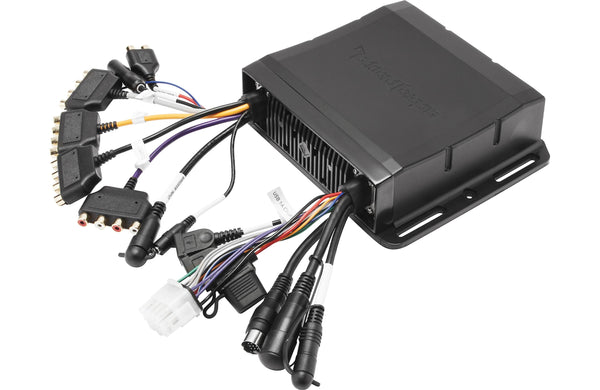

The PMX-8BB is a hide-away digital media receiver black box designed for use with the PMX-8DH controller. Features CANbus functionality for connection to Raymarine MFD (Multi-Function Display) systems using PMX-CAN.

Global AM/FM/WB Tuner, SiriusXM Ready, Full iOS/Andriod, Made for iPod, Dual USB Input w/ Video Playback, BLUETOOTH avrcp 1.5, 2-Source Zone Control, 4-Zone Volume Control, 6 Channel F/R/S 4V Zone 1&2 Preouts, 2 Channel Zone 3&4 4V Preouts, 7-Band Graphic Equalizer, Punch EQ, A/V Input, Video Output, CAN Ready, EEPROM Non-Volatile Memory,Wired Illumination Control, Steering Wheel Control Ready. Features CANbus functionality for connection to Raymarine MFD (Multi-Function Display) systems using the PMX-CAN adaptor (see Accessories tab.)

Key Points

• Hideaway marine digital media receiver
• Requires PMX-8DH wired remote
• Built-in amplifier (25 watts RMS/50 peak x 4 channels)
• Built-in Bluetooth
• Control up to 4 audio zones
• Selectable high pass and low pass crossover points for each zone
  7-band EQ
• Adjustable input gain for each source
• Works with Apple and Android phones
• Control Pandora through USB (Apple) or Bluetooth (Android)
• AM/FM receiver with Weather Band

Features

• Automotive grade AM/FM Radio, Weatherband Radio digital tuner.
• Supports Radio Data System (RDS) to receive and display broadcast information
• Bluetooth, A2DP only, AVRCP 1.4
• Made for iPhone apple certified
• Licensed Pandora control (apple direct USB or BT/ android via bluetooth)
• Simple secure pairing bluetooth profile for android & iOS
• Display album art from connected iPhones on the radios display
• 4 sets (Zones) RCA out; 4 active with 4 channels per zone (2 full range + 2 sub) 4V signal output
• Folder browsing via BT connected iPhones
• Internal power amplifier 4x50w 2 ohm stable
• Selectable crossover slopes of 12dB or 24 dB for each independant zone
• Selectable high pass and low pass crossover points for each independent zone
• Dedicated DSP audio processors for each zone with independent 7 Band EQ+Punch EQ
  Adjustable input gain for each source
• Electrically Erasable Programmable Read-Only Memory (EEPROM) is a type of non-volatile memory used in electronic devices to store data that must be saved when power is removed
• Integrated voltage gauge w/ low voltage alert
• Wired remote ready (up to 3 remotes)
• Rear aux-in (L/R)
• External steering wheel remote control interface compatible
• External trigger input to activate reverse camera mode
• Wired illumination control
• Optional CAN-BUS transceiver ready (PMX-CAN)
• Rear USB with 1a charging (supports album art on USB connected iPhones)
• Epoxy coated circuit board
• Upgradeable Firmware and Bluetooth Software via USB
• IPX5 Water Intrusion Rating: Water projected from nozzles from any direction shall have no harmful effects.
• CANbus (Controller Area Network) compatible. Requires PMX-CAN accessory
• Compatible with a Multi-Function Display using NMEA2K entertainment standard.
• See our MFD Compatibility Chart
• *Antenna not included
• 2-Year Warranty
