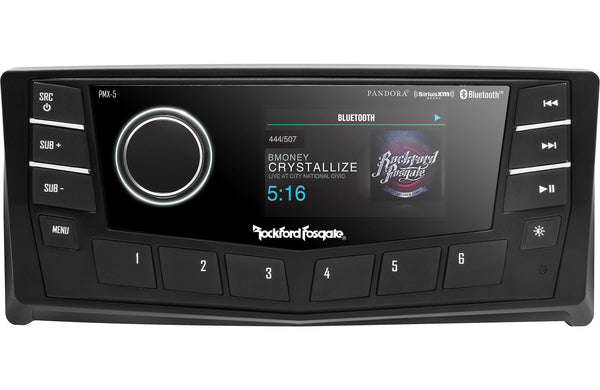

Rockford Fosgate Punch Marine/Motorsport AM/FM/WB Digital Media Receiver 2.7" Display w/ CAN bus
Description
The PMX-5CAN is an AM/FM/WB tuner and digital media receiver with 2.7" full color display with CAN bus functionality. Features CANbus functionality for connection to Raymarine MFD (Multi-Function Display) systems using PMX-CAN.
The PMX-5CAN digital media receiver is designed for marine and motorsports systems.
The PMX-5CAN features a 2.7"full color TFT display for optimum viewing - even in full sun - that is optically wet bonded to prevent any dust or moisture penetration. It is IPX6 rated and uses a water resistant rotary encoder knob with white LED button illumination and front mounted sub level controls. Additionally, with features such as SiriusXM and Pandora capabilities, Bluetooth audio steaming with album art support for Apple and Android products and true 2 zone/2 source control, this unit becomes a true command center of any system.
Output flexibility comes a 4x50W @ 2ohm internal amplifier or dual zone output RCA's allowing the addition of after-market amplifiers for more power and output. Add in the EEPROM memory system, custom GUI interface and wired remote expansion capabilities and you have the only media receiver you'll ever need. The PMX-5CAN also features CANbus functionality for connection to Raymarine MFD (Multi-Function Display) systems using the PMX-CAN adaptor (see Accessories tab.)
Key Points
General Features
- Marine digital media receiver with AM/FM/WB tuner (does not play CDs)
- CANbus functionality works with Raymarine MFDs
- Works with Apple and Android smartphones
- Built-in Bluetooth for music streaming (will not make calls)
- Built-in amplifier (25 watts RMS/50 peak x 4 channels)
- DIN chassis with 1.75-DIN front panel
- 2.7" color display
Features
- ISO8846/SAE J1171 Ignition Protection Certified
- Stainless Steel Rear Chassis
- Pandora Internet Radio
- SiriusXM-Ready™
- Steering Wheel Control Interface Compatible
- A2DP and AVRCP Bluetooth Wireless Streaming
- Low Voltage Warning Alert
- Multi Region Radio Frequencies
- FCC, CE, IC, and C-Tick Certified
- AUX and USB Inputs with USB Charging
- Independent Subwoofer Level Control
- On Board Punch EQ Control
- Selectable HP / LP / AP Crossovers with Selectable Slope 12 / 24 dB/Oct
- IPX6 Marine Grade for prevention of water intrusion
- 7-Band Graphic EQ
- 2.7" full color display w/ auto dimming backlightning
- Zone Control: 2 Zone / 2 Source (F/R/S + F)
- AM/FM/WB Tuner
- CANbus (Controller Area Network) compatible. Requires PMX-CAN accessory
- Compatible with a Multi-Function Display using NMEA2K entertainment standard.
- See our MFD Compatibility Chart
- *Antenna not included
- 2-Year Warranty
Specifications
Expandability
AUX Input | RCA (rear) |
Audio/video Input | --- |
USB Input | Rear |
USB Port Power | 1A |
Backup Camera Input | No |
Second Camera Input | No |
CarPlay | No |
Android Auto | No |
Siri Control | No |
Alexa Voice Control | N |
Android Control | Yes |
Memory Card Slot | USB memory |
Bluetooth Compatible | Built-in |
Satellite Radio Ready | SiriusXM |
HD Radio | No |
Navigation | --- |
iPod Compatibility
Full size | No |
Nano | 6Gen and newer |
Touch | 3Gen and newer |
iPhone | 3GS and newer |
General
RMS Power (CTA-2006) | 25 watts |
RMS Power (Manufacturer) | --- |
Peak Output | 50 watts |
RMS Power Bandwidth | 20-20kHz |
Preamp Outputs | 6-channel |
Sub Preamp Outputs | No |
Switchable Rear Preamp Outputs | Yes |
Video Screen | No |
Navigation App Compatible (iOS) | |
Navigation App Compatible (Android) | |
Preamp Voltage | 4 volts |
Screen Size | 0 |
Display Color | Multi-color |
Key Button Color | White |
EQ Bands | 7 |
Wireless Remote | No |
Steering Wheel Control Compatible | Adapter required |
Parts Warranty | 2 Years |
Labor Warranty | 2 Years |
Tuner
FM Sensitivity | 8 dBf |
European Tuning | Yes |
Seek/Scan | Seek |
Radio Data System | No |
File Playback
Music File Playback | MP3 |
High-res Playback | N |
Second Camera Input Lane Watch | N |
