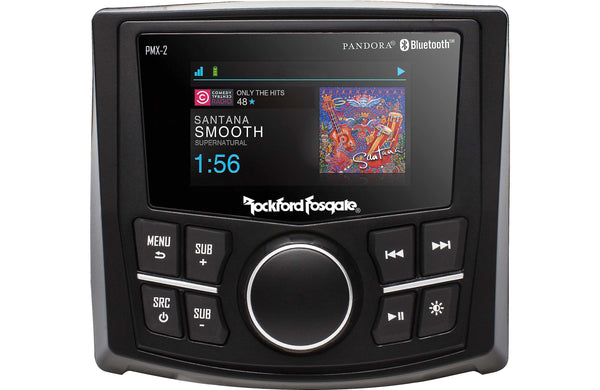

Rockford Fosgate PMX-2 Bluetooth Digital Media Receiver & 2.7 Inch Display
Description
The PMX-2 is an AM/FM/WP tuner and compact digital media receiver with a 2.7" full color display.
The PMX-2 compact digital media receiver is designed for marine and motorsports applications.
The PMX-2 features a 2.7"full color TFT display for optimum viewing - even in full sun - that is optically wet bonded to prevent any dust or moisture penetration. It is IPX6 rated and uses a water resistant rotary encoder knob with white LED button illumination and front mounted sub level controls. Additionally, with features such Pandora control capabilities and Bluetooth audio steaming with album art support1 this unit becomes a true command center of any system. 1Android devices equipped with limited functionality. Please refer to owners manual for details.
Output flexibility comes with a 4x50W @ 2ohm internal amplifier or front and rear/sub output RCA's allowing the addition of after-market amplifiers for more power and output. Add-in the EEPROM memory system, custom GUI interface, and wired remote expansion capabilities and you have the only media receiver you'll ever need.
Key Points
- Marine digital media receiver with AM/FM/WB tuner (does not play CDs)
- Built-in amplifier (25 watts RMS/50 peak x 4 channels)
- Built-in Bluetooth for music streaming (will not make calls)
- Works with Apple smartphones
- 2.7" color display
- Fits into a standard 3" gauge opening
Features
- ISO8846/SAE J1171 Ignition Protection Certified
- Pandora Internet Radio
- A2DP and AVRCP Bluetooth Wireless Streaming
- FCC, CE, IC, and C-Tick Certified
- Multi Region Radio Frequencies
- Low Voltage Warning Alert
- AUX and USB Inputs with USB Charging
- On Board Punch EQ Control
- Independent Subwoofer Level Control
- iPod playback with on-screen display
- Selectable HP / LP / AP Crossovers with Selectable Slope 12 / 24 dB/Oct
- IPX6 Marine Grade for prevention of water intrusion
- 7-Band Graphic EQ
- 2.7" full color display w/ auto dimming backlightning
- AM/FM/WB Tuner
- Zone Control: 1 Zone / 1 Source (F/R or Sub)
- *Antenna not included
- 2-Year Warranty
Specifications
Performance
AUX Input | RCA (rear) |
Audio/video Input | --- |
USB Input | Rear |
USB Port Power | 1A |
Backup Camera Input | No |
Second Camera Input | No |
CarPlay | No |
Android Auto | No |
Siri Control | No |
Alexa Voice Control | N |
Android Control | Yes |
Memory Card Slot | USB memory |
Bluetooth Compatible | Built-in |
Satellite Radio Ready | No |
HD Radio | No |
Navigation | --- |
iPod Compatibility | |
Full size | No |
Nano | 6Gen and newer |
Touch | 3Gen and newer |
iPhone | 3GS and newer |
General
RMS Power (CTA-2006) | 25 watts |
RMS Power (Manufacturer) | --- |
Peak Output | 50 watts |
RMS Power Bandwidth | 20-20kHz |
Preamp Outputs | 4-channel |
Sub Preamp Outputs | No |
Switchable Rear Preamp Outputs | Yes |
Video Screen | No |
Navigation App Compatible (iOS) | |
Navigation App Compatible (Android) | |
Preamp Voltage | 4 volts |
Screen Size | 0 |
Display Color | Multi-color |
Key Button Color | White |
EQ Bands | 7 |
Wireless Remote | No |
Steering Wheel Control Compatible | No |
Parts Warranty | 2 Years |
Labor Warranty | 2 Years |
Tuner
FM Sensitivity | 8 dBf |
European Tuning | Yes |
Seek/Scan | Seek |
Radio Data System | No |
File Playback
Music File Playback | MP3, WMA |
High-res Playback | N |
Second Camera Input Lane Watch | N |
