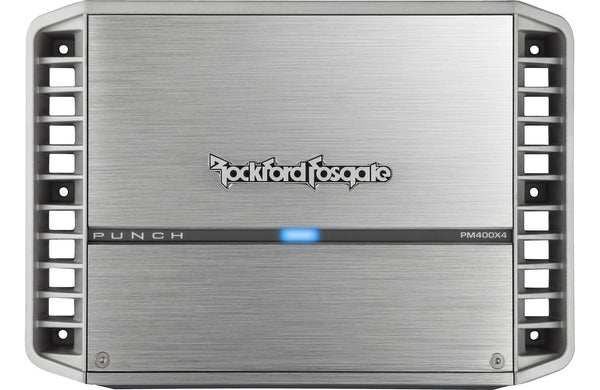

Rockford Fosgate PM400X4 Punch Series 400 Watt 4 Channel Marine Amplifier

SKU#

$469.99
Unit price per

Description

The PM400X4 is a 400 Watt 4-channel amplifier with high dynamic power using Class-A/B technology and a conformal coated pc board designed for motorsport and marine applications.

The PM400X4 is perfect for 4-way front-stage/rear-fill or 3-way front-stage/subwoofer systems. Simply drop a pair of component speakers on the front channels and subs on the rear and BOOM - you got "The PUNCH." With its flexible design, the PM400X4 is an excellent amplifier choice for virtually any vehicle.

Key Points

4-channel marine amplifier
50 watts RMS x 4 at 4 ohms (400 watts peak)
100 watts RMS x 4 at 2 ohms
200 watts RMS x 2 at 4 ohms (bridged)
CEA-2006 compliant
Class AB amp technology
Conformal-coated circuit board — suitable for powersports and
Marine applications
Marine-grade stainless steel hardware

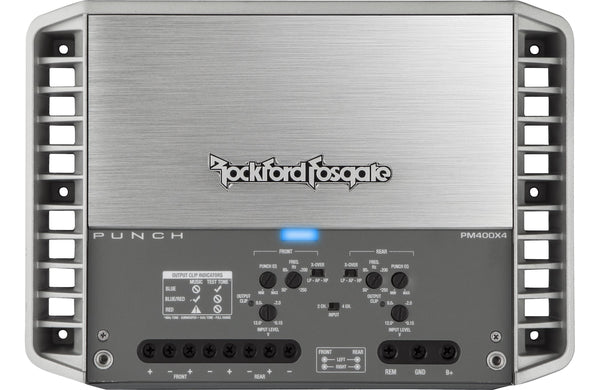

Hidden top-mount control panel
Clean set-up technology with LED input/output indicators
Speaker-level inputs (speaker wire to RCA adapter required)
Variable low-pass and high-pass filters
Frequency response: 20-20,000 Hz
Built-in Punch EQ with +18dB boost @ 45Hz
Fuse rating: 60A x 1 (fuse not included)
Dimensions: 11-1/16"W x 2-7/16"H x 8-13/16"D
Warranty: 1 year
Our 60-day money-back guarantee
MFR # PM400X4

Features

High level input capable with Auto Turn-On circuit
Features C.L.E.A.N. Set-up
12dB/octave Butterworth crossover
On-board Punch EQ with +18dB boost @ 45Hz
Muted turn on
Cast aluminum heatsink
Stealth top mounted control panel
Short circuit protection
Over current protection
Marine grade stainless steel hardware
Marine grade two part epoxy coating on circuit boards
2-Year Warranty

Specifications

Performance

RMS Power Output (Watts x Channels)	50 x 4
Frequency Response at Rated RMS Power	20-20k Hz
THD at Rated RMS Power	1%
Signal to Noise Ratio	N/A
Input Voltage	14.4v
Peak Power Output (Watts x Channels)	N/A
Power at 2 Ohms (Watts x Channels)	100 x 4
Bridged Power (Watts x Channels)	200 x 2
Minimum Impedance Bridged	4
Minimum Impedance Unbridged	2

Features

Amplifier Class	AB
Low-Pass Crossover Frequency	50-250 Hz
Low-Pass Slope (dB/octave)	12 dB/octave
High-Pass Crossover Frequency	50-250 Hz
High-Pass Slope (dB/octave)	12 dB/octave
Bass Boost	0-18 dB
Bass Boost Frequency	45 Hz
Fan Cooled	No
Fuse Rating	60
Speaker Level Inputs	Yes
Preamp Outputs	No
Height (inches)	2/7/2016
Width (inches)	11/1/2016
Depth (inches)	8/13/2016
Parts Warranty	1 Year
Labor Warranty	1 Year
