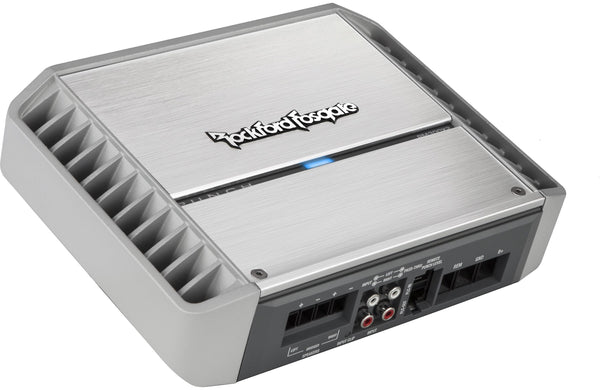

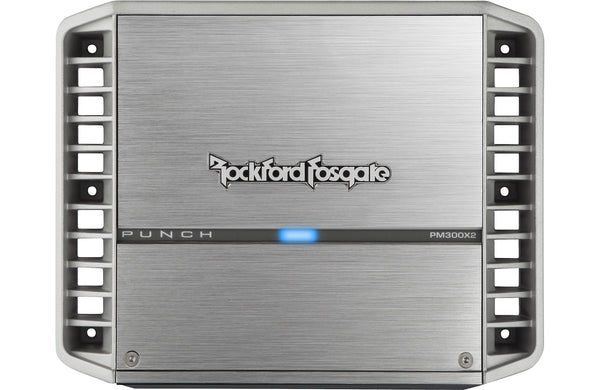

Rockford Fosgate PM300X2 Punch Series 300 Watt 2 Channel Marine Amplifier

Rockford Fosgate

SKU#

  • $319.99
    Unit price per
Free Shipping
In Stock
Out of Stock

Description

The PM300X2 is a 300 Watt 2-channel amplifier with high dynamic power using Class-a/b technology and a conformal coated pc board designed for motorsport and marine applications.

The PM300X2 is a solid choice if you're looking to drive a pair of coaxial speakers, component speakers, or a single subwoofer. The amplifier can also be run in stereo/mono mode simultaneously when using passive crossovers (not supplied) on all speakers. With proven PUNCH technology, the PM300X2 delivers real Rockford Fosgate power from a small design and is flexible to accommodate any moderately sized system.

Key Points

  • Marine/powersports 2-channel amplifier
  • 100 watts RMS x 2 at 4 ohms
  • 150 watts RMS x 2 at 2 ohms
  • 300 watts RMS x 1 at 4 ohms (bridged)
  • CEA-2006 compliant
  • Class AB amp technology

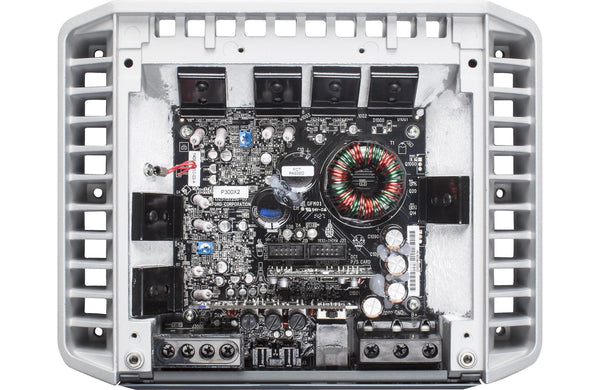

  • Conformal-coated circuit board — suitable for powersports and
  • Marine applications
  • Built-in Punch EQ with +18dB boost @ 45Hz
  • Clean set-up technology with LED input/output indicators

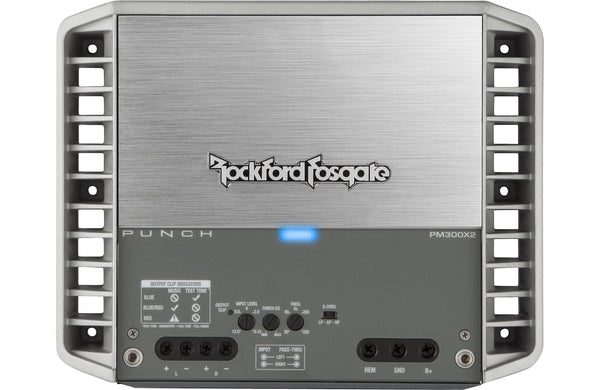

  • Hidden top-mount control panel
  • Marine-grade stainless steel hardware
  • Speaker-level inputs (speaker wire to RCA adapter required)
  • Variable low-pass and high-pass filters
  • Fuse rating: 50A x 1 (fuse not included)
  • Frequency response: 20-20,000 Hz
  • Dimensions: 9-15/16"W x 2-7/16"H x 8-13/16"D
  • Warranty: 1 year
  • Our 60-day money-back guarantee
  • MFR # PM300X2

Features

  • High level input capable with Auto Turn-On circuit
  • RCA pass-thru outputs
  • Features C.L.E.A.N. Set-up
  • 12dB/octave Butterworth crossover
  • Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
  • On-board Punch EQ with +18dB boost @ 45Hz
  • Cast aluminum heatsink
  • Stealth top mounted control panel
  • Muted turn on
  • Short circuit protection
  • Over current protection
  • Marine grade two part epoxy coating on circuit boards
  • Marine grade stainless steel hardware
  • 2-Year Warranty

Specifications

Performance

RMS Power Output (Watts x Channels) 100 x 2
Frequency Response at Rated RMS Power 20-20k Hz
THD at Rated RMS Power 1%
Signal to Noise Ratio N/A
Input Voltage 14.4v
Peak Power Output (Watts x Channels) N/A
Power at 2 Ohms (Watts x Channels) 150 x 2
Bridged Power (Watts x Channels) 300 x 1
Minimum Impedance Bridged 4
Minimum Impedance Unbridged 2



Features

Amplifier Class AB
Low-Pass Crossover Frequency 50-250 Hz
Low-Pass Slope (dB/octave) 12 dB/octave
High-Pass Crossover Frequency 50-250 Hz
High-Pass Slope (dB/octave) 12 dB/octave
Bass Boost 0-18 dB
Bass Boost Frequency 45 Hz
Fan Cooled No
Fuse Rating 50
Speaker Level Inputs Yes
Preamp Outputs 2
Height (inches) 2/7/2016
Width (inches) 9/15/2016
Depth (inches) 8/13/2016
Parts Warranty 1 Year
Labor Warranty 1 Year
