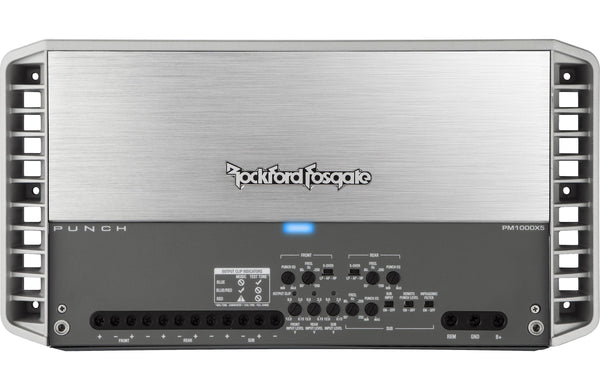

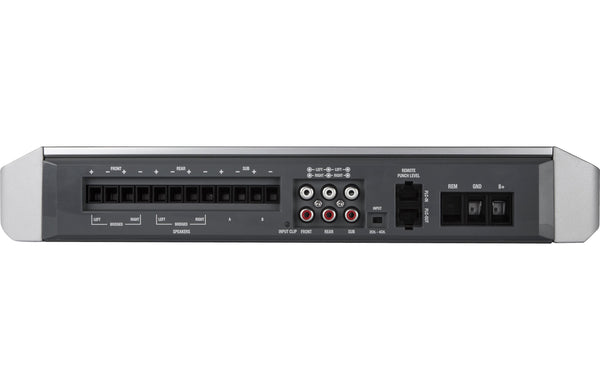

Rockford Fosgate PM1000X5 Punch Series 1000 Watt 5 Channel Marine Amplifier
Description
The PM1000X5 is a 1000 Watt 5-channel amplifier with high dynamic power using Class-a/b technology on the front/rear channels, Class-bd for the subwoofer channel, and a conformal coated pc board designed for motorsport and marine applications.
The PM1000X5 1,000 Watt full-range 5-channel is the one-and-only amplifier you will need to run your entire system. Run dash speakers off the front channels, run back speakers off the rear channels and run subwoofer(s) off the 5th channel! Known world-wide for brute power, this amplifier offers a higher level of efficiency along with a tri-stage protection that covers thermal, over-current and short circuits.
Key Points
- 5-channel full-range amplifier
- 75 watts RMS x 4 + 150 watts RMS x 1 at 4 ohms (1000 watts peak)
- 125 watts RMS x 4 + 300 watts RMS x 1 at 2 ohms
- Sub channel stable at 1 ohm (500 watts RMS)
- Hidden top-mount control panel
- Class AB technology for front/rear speakers, Class BD for subwoofer
- Built-in Punch EQ with +18dB boost at 45Hz
- Speaker-level inputs (speaker wire to RCA adapter required)
- Conformal-coated circuit board ā suitable for marine and powersports applications
- Clean set-up technology with LED input/output indicators
- Marine-grade stainless steel hardware
- Cast aluminum heatsink
- Dimensions: 15-1/8"W x 2-7/16"H x 8-7/8"D
- Frequency response: 20-20,000 Hz (F/R), 20-500 Hz (sub)
- CEA-2006 compliant
- Fuse rating: 150A x 1 (fuse not included)
- Warranty: 1 year
- Our 60-day money-back guarantee
- MFR # PM1000X5
Features
- High level input capable with Auto Turn-On circuit
- 12dB/octave Butterworth crossover
- Features C.L.E.A.N. Set-up
- On-board Punch EQ with +18dB boost @ 45Hz
- Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
Muted turn on - Stealth top mounted control panel
- Short circuit protection
- Cast aluminum heatsink
- Over current protection
- Infrasonic filter
- 2/4 channel input switch
- Marine grade two part epoxy coating on circuit boards
- Marine grade stainless steel hardware
- 2-Year Warranty
Specifications
Performance
RMS Power Output (Watts x Channels) | 75 x 4 |
Frequency Response at Rated RMS Power | 20-20k Hz |
THD at Rated RMS Power | 1% |
Signal to Noise Ratio | N/A |
Input Voltage | 14.4v |
Peak Power Output (Watts x Channels) | N/A |
Power at 2 Ohms (Watts x Channels) | 125 x 4 |
Bridged Power (Watts x Channels) | 250 x 2 |
Minimum Impedance Bridged | 4 |
Minimum Impedance Unbridged | 1 |
Ā
Features
Amplifier Class | AB/D |
Low-Pass Crossover Frequency | 50-250 Hz |
Low-Pass Slope (dB/octave) | 12 dB/octave |
High-Pass Crossover Frequency | 50-250 Hz |
High-Pass Slope (dB/octave) | 12 dB/octave |
Bass Boost | 0-18 dB |
Bass Boost Frequency | 45 Hz |
Fan Cooled | No |
Fuse Rating | 150 |
Speaker Level Inputs | Yes |
Preamp Outputs | No |
Height (inches) | 2/7/2016 |
Width (inches) | 15-1/8 |
Depth (inches) | 8/7/2008 |
Parts Warranty | 1 Year |
Labor Warranty | 1 Year |
