Rockford Fosgate PM1000X1BD Punch Series 10000 Watt Mono Marine Amplifier
Description
The PM1000X1bd is a 1000 Watt mono amplifier with high dynamic power using Class-bd technology and a conformal coated pc board designed for motorsport and marine applications.
With its super efficient Class-bd circuit topology, the PM1000X1bd assures maximum BOOM for your buck! Due to its dedicated low frequency response, this amplifier is optimized for mid-bass speakers or subwoofers only. No need to worry because its 1-ohm capability will drive a pair of 4-ohm DVC subwoofers or quad-configuration of 2-ohm DVC subwoofers with ease.
Key Points
- Mono subwoofer amplifier
- 300 watts RMS x 1 at 4 ohms (1000 watts peak)
- 500 watts RMS x 1 at 2 ohms
- 1000 watts RMS at 1 ohm
- CEA-2006 compliant
- Class BD amp technology
- Conformal-coated circuit board ā suitable for power sports and marine applications
- Marine-grade stainless steel hardware
- Variable low-pass filter (50-250 Hz, 12 dB/octave)
- Speaker-level inputs (speaker wire to RCA adapter required)
- Frequency response: 20-250 Hz
- Built-in Punch EQ with +18dB boost @ 45Hz.
- Fuse rating: 140A x 1 (fuse not included)
- Clean set-up technology with LED input/output indicators
- Hidden top-mount control panel
- Dimensions: 13-3/8"W x 2-7/16"H x 8-13/16"D
- Warranty: 1 year
- Our 60-day money-back guarantee
- MFR # PM1000X1BD
Features
- High level input capable with Auto Turn-On circuit
- Features C.L.E.A.N. Set-up
- RCA pass-thru outputs
- 12dB/octave Butterworth crossover
- Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
- On-board Punch EQ with +18dB boost @ 45Hz
- Cast aluminum heatsink
- Muted turn on

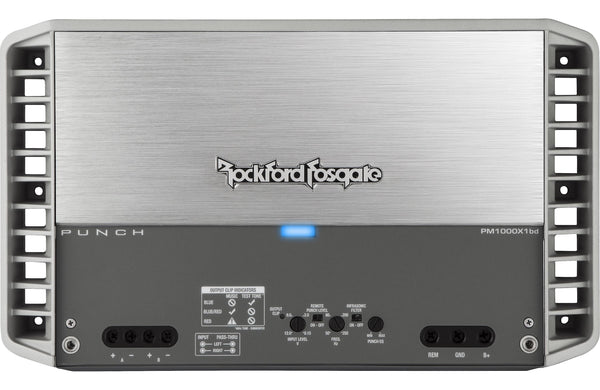

- Stealth top mounted control panel
- Short circuit protection
- Over current protection
- Infrasonic filter

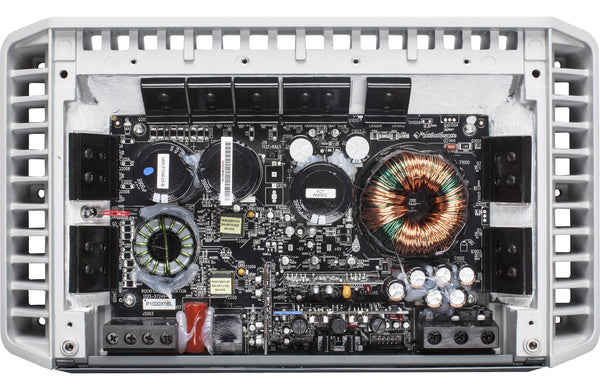

- Marine grade two part epoxy coating on circuit boards
- Marine grade stainless steel hardware
- 2-Year Warranty
Specifications
Performance
RMS Power Output (Watts x Channels) | 300 x 1 |
Frequency Response at Rated RMS Power | 20-250 Hz |
THD at Rated RMS Power | 1% |
Signal to Noise Ratio | N/A |
Input Voltage | 14.4v |
Peak Power Output (Watts x Channels) | N/A |
Power at 2 Ohms (Watts x Channels) | 500 x 1 |
Bridged Power (Watts x Channels) | N/A |
Minimum Impedance Bridged | N/A |
Minimum Impedance Unbridged | 1 |
Ā
Features
Amplifier Class | BD |
Low-Pass Crossover Frequency | 50-250 Hz |
Low-Pass Slope (dB/octave) | 12 dB/octave |
High-Pass Crossover Frequency | N/A |
High-Pass Slope (dB/octave) | N/A |
Bass Boost | 0-18 dB |
Bass Boost Frequency | 45 Hz |
Fan Cooled | No |
Fuse Rating | 140 |
Speaker Level Inputs | Yes |
Preamp Outputs | 2 |
Height (inches) | 2/7/2016 |
Width (inches) | 13-3/8 |
Depth (inches) | 8/13/2016 |
Parts Warranty | 1 Year |
Labor Warranty | 1 Year |
