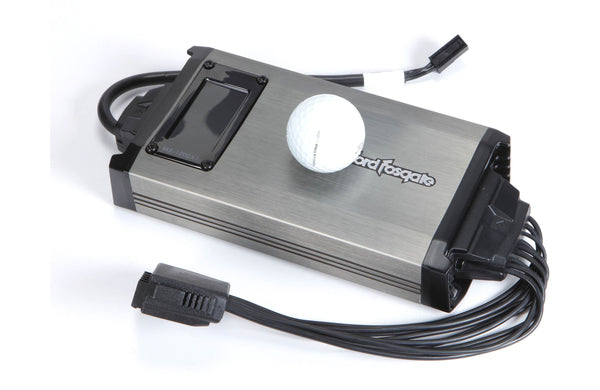

Rockford Fosgate M5-1000X1 1000 Watt Mono Marine Amplifier

Description

Serious marine sound, made simple. The M5 amplifiers feature the next level of Element Ready™ design from Rockford Fosgate that’s built as rugged as the outdoor environment it’s used in.

Rockford Fosgate amplifiers are known world-wide for producing more power than their ratings suggest. The M5 amplifiers are the first series based on new industry standard Dynamic Power ratings, bringing their conservative ratings to the forefront. Engineered from the ground up and purpose-built to deliver more output where you actually hear it, this is real dynamic power that performs not only on paper, but performance heard through the musical experience. You’ll see two amplifier power ratings, the traditional Continuous Power output, and the new Dynamic Power output, both tested in accordance with the CTA-2006 specification. Consider Continuous Power as wattage developed on the test bench for comparison against other amplifiers in the same class, and Dynamic Power as real-world wattage when connected to a speaker load, listening to music. Either way you look at it, Rockford Fosgate is proving – once again – these amplifiers are powerful enough to drive any speaker or subwoofer you throw at them.

Key Points

• Mono marine subwoofer amplifier

  • 500 watts RMS CTA-2006 x 1 at 4 ohms
  • 750 watts RMS CTA-2006 x 1 at 1 or 2 ohms
  • 1000 watts Dynamic Power at 1 ohm
• Class-BD amplifier design
• Frequency response: 30-245 Hz
• Variable low-pass filter (50-250 Hz, 12 dB/octave)
• Switchable subsonic filter (30 Hz, 12 dB/octave)
• Variable bass boost (0-18 dB at 45 Hz)

Features

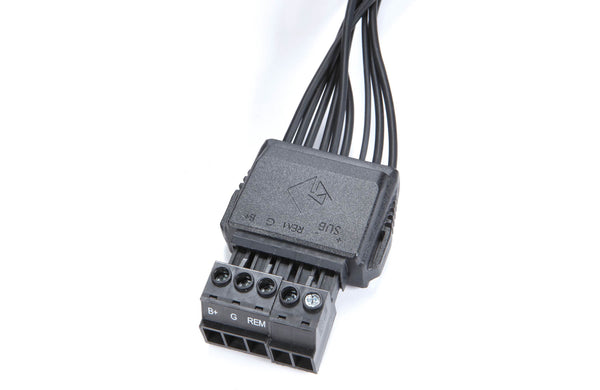

• Element Ready™ design with integrated harness & panel seals
• Preset removes the need to set-up and tune the amp when used with Rockford Fosgate UTV audio kits
• Play all day, easy to integrate, and keep music playing for extended lengths of time
• Clean input/output clip detection and indicator LEDs
• Constant Power provides instantaneous delivery of output over varying impedance loads
• Focused mass heat sink allows critical aluminum material to be located around hottest internal devices
• OEM and aftermarket radio integration inputs
• Top mounted control panel with Element Ready™ smoked lens cover
• Quality & Performance tested using proprietary RATS (Rockford Automated Testing System)
• Low Impedance Stability
• Class-BD technology provides 75-80% efficiency over traditional class A/B designs
• Discrete Surface Mount technology with 1% tight-tolerances for high efficiency & reduced cross-talk
• Mesha 4 reduces MOSFET temps, lowers distortion, increases durability and prolongs device life span
• Chassis Isolation from mounting points greatly reduces possible introduction of vehicle noise
• Balanced Differential Inputs eliminates noise picked up by signal cables
• Remote-Out feature when using high level inputs
• 2-Year Warranty
