Rockford Fosgate M2-300X4 300 Watt 4 Channel Marine Amp

Rockford Fosgate

SKU#

  • $319.99 USD
    Unit price per
In Stock
Out of Stock

Description

Designed to withstand the elements, the M2-300X4 Element Ready™ amplifier is a 300 watt, full-range class-D model, capable of operating at 4Ω or 2Ω stereo, and 4Ω bridged/mono. This amplifier is extremely efficient because of its class D technology which reduces demand on the electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases.

The M2 Series were developed for marine audio environments that feature UV resistant protection and special internal conformal coating that protect the electronics from water. It’s designed for those who want a reliable amplifier – with all the power and performance you’ve come to expect from Rockford Fosgate – at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being “under rated,” easily surpassing all specifications, and most importantly, generating more power than their ratings. The latest generation of M2 Series amplifiers are also designed to be easy to setup and configure, making them perfect for use in any application.

Key Points

  • 4-channel marine amplifier
    • 50 watts RMS x 4 at 4 ohms
    • 75 watts RMS x 4 at 2 ohms
    • 150 watts RMS x 2 bridged at 4 ohms (4-ohm stable in bridged mode)
  • CTA-2006 compliant
  • Class-D amplifier design
  • Variable high- and low-pass filters (50-250 Hz, 12 dB/octave)
  • Marine features:
    • Element Ready™ chassis and conformal-coated PC boards
    • UV stable powder-coated cast-aluminum heatsink
    • Zinc nickel-plated marine-grade brass connection terminals

Features

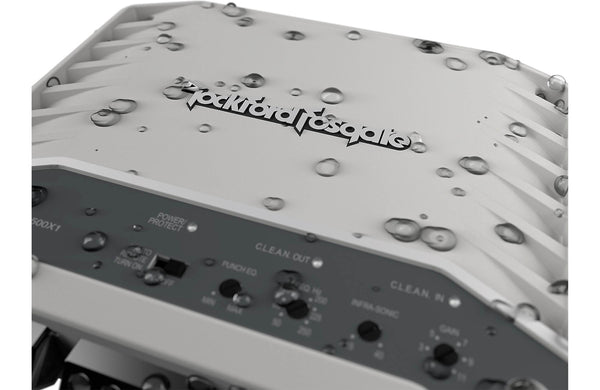

  • Element Ready™ design protects against outdoor exposure
  • UV stable powder coated cast aluminum heatsink
  • Conformal coated circuit board protects against dust and water
  • Clean input/output clip detection and indicator LEDs
  • Zinc Nickel-plated Marine grade brass connection terminals
  • Optimized using AudioGraph PowerCube measurement tool

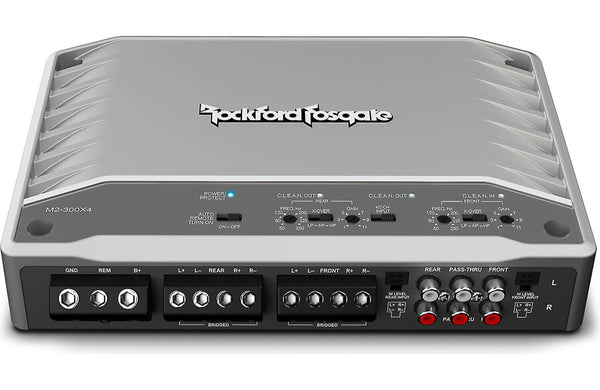

  • Top Mounted Control Panel

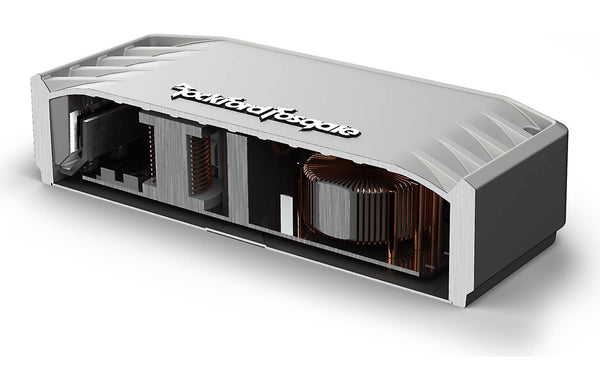

  • Focused mass heat sink allows critical aluminum material to be located around hottest internal devices
  • Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
  • Short Circuit & Over Current Protection
  • 2/4 channel input switch
  • Integrated Power and Speaker Terminals
  • Balanced Differential Inputs eliminates noise picked up by signal cables
  • RCA pass-thru outputs
  • Integration with OEM and Aftermarket Radios
  • "Auto-Sense" turn-on with remote out (high level in)
  • Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
  • Low Impedance Stability
  • Quality & Performance tested using proprietary RATS (Rockford Automated Testing System)
  • CEA-2006 Compliant & CE Compliant
  • 2-Year Warranty

Specifications

Performance

RMS Power Output (Watts x Channels) 50 x 4
Frequency Response at Rated RMS Power 20-20k Hz
THD at Rated RMS Power 1%
Signal to Noise Ratio 70 dB
Input Voltage 14.4v
Peak Power Output (Watts x Channels) N/A
Power at 2 Ohms (Watts x Channels) 75 x 4
Bridged Power (Watts x Channels) 150 x 2
Minimum Impedance Bridged 4
Minimum Impedance Unbridged 2



Features

Amplifier Class D
Low-Pass Crossover Frequency 50-250 Hz
Low-Pass Slope (dB/octave) 12 dB/octave
High-Pass Crossover Frequency 50-250 Hz
High-Pass Slope (dB/octave) 12 dB/octave
Bass Boost No
Bass Boost Frequency N/A
Fan Cooled No
Fuse Rating 60
Speaker Level Inputs Yes
Preamp Outputs 2
Height (inches) 2
Width (inches) 10/1/2016
Depth (inches) 7/3/2004
Parts Warranty 2 Years
Labor Warranty 2 Years
