Raymarine ST1000 Plus Tiller Pilot



  • $524.99 USD
    Unit price per
In Stock
Out of Stock


ST1000+ Tiller Autopilot Kit for up to 6600 lbs Displacement Vessels (A12004) by Raymarine. Includes Computer, Control Unit. The ST1000 Plus from Raymarine is a tiller autopilot for tiller steered sailing vessels up to 6,600 lbs (3,000 kg). This product is made of high-quality materials to serve you for years to come. Designed using state-of-the-art technology and with customers in mind. It will meet your needs and deliver great quality at an affordable cost.


  • Engineered to high standards
  • High-grade design delivers extended lifespan
  • Made with premium materials


  • Power Supply: 12V systems
  • Absolute Voltage Range: 10 - 16VDC
  • Power Consumption: 40 mA
  • Weight: 1.53 (3.4)
  • Mounting methods: Reversible port or starboard
  • Display size: 45 mm segmented LCD
  • Display Lighting: 3 levels plus off
  • Connections: NMEA0183 input/SeaTalk
  • Recommended Maximum Displacement: 6600 lbs
  • Thrust: 125 lbs (57 kg)
  • Stroke: 236 mm (9.3 in)


  • ST1000 Plus Tiller Pilot
  • Instruction Manual
  • Plus Tiller Pilot 12V Socket

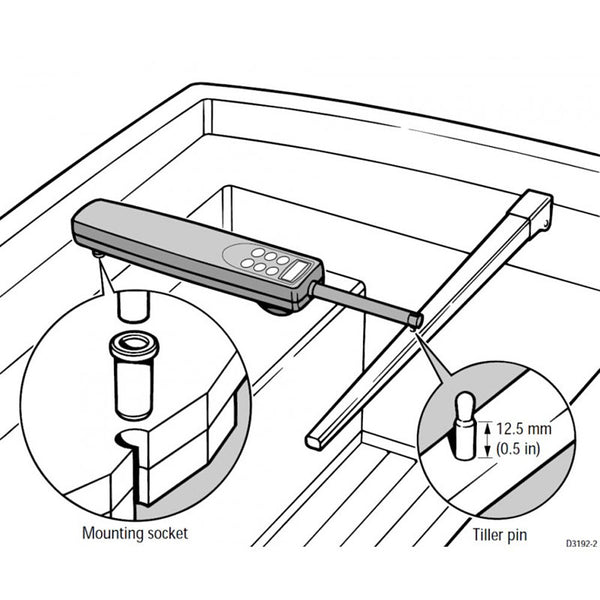

  • Tiller Pin
  • Mounting Socket

Notes: Always take the fully laden displacement weight of the vessel into account; this is often 20% above the designed displacement.
