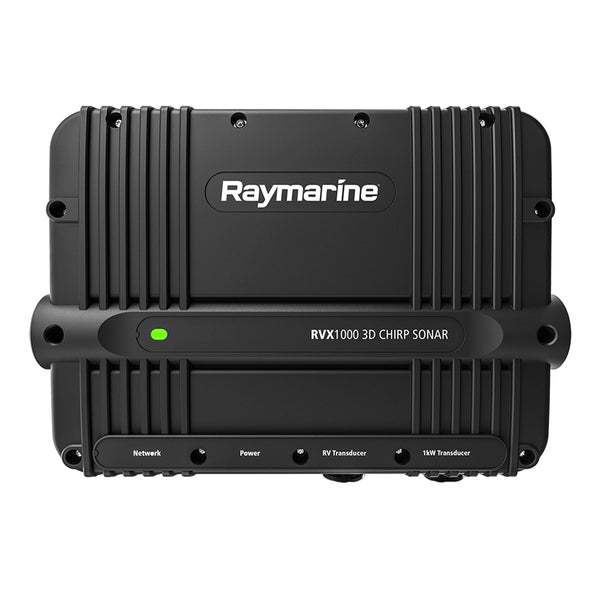

Raymarine RVX1000 3D Chirp Sonar Module

Description

RVX1000 3D CHIRP Sonar Module by Raymarine. The RVX1000 offers all of the sonar performance and features of Raymarine Axiom Pro in a remotely mounted black box sonar module. With Raymarine's award winning RealVision 3D sonar technology, CHIRP Side and DownVision, plus a high powered 1kW dual channel CHIRP sonar, the RVX1000 is a versatile sonar solution for both inshore and offshore fishing.

Features

• All-in-one sonar module with 5 channels for both inshore and offshore fishing: RealVision 3D, CHIRP SideVision, CHIRP DownVision, Low-power, high-frequency CHIRP 1kW high-powered CHIRP Sonar (Low, Medium, High CHIRP, 50/80/100/160/200kHz)
• Easily identify structure and locate fish with the life-like clarity of RealVision 3D sonar
• TruZoom magnification reveals extra target detail without loss of resolution
• The RVX1000's dedicated quad core processor allows previous generation MFD's to run multiple sonar channels simultaneously without any compromise in performance

Specifications

• Sonar: RealVision 3D (CHIRP Side and DownVision, High Frequency CHIRP, 3D Sonar) + 1kW High Power CHIRP
• Sonar Depth: High Frequency CHIRP = 900' DownVision = 600' SideVision = 300' Port and Starboard 1kw = 5,000'
• Nominal Supply Voltage: 12 V and 24 VDC
• Operating Voltage Range: 10.8 V to 31.2 VDC
• Power Consumption: 10.4 W (Maximum)
• Current: 2.4 A Peak; 1.2 A RMS
• Waterproof Rating: IPX6/IPX7
• Operating Temperature: -25°C (-13°F) to +55°C (+131°F)
• RealVision Transducers: Direct connect to 25-pin port
• CPT-S Transducers: Adapter A80490 to connect to 25-pin port
• DownVision Transducers: Adapter A80490 to connect to 25-pin port

Includes

• RVX1000 Sonar Module
• Power Cable, 1.5m
• 4 x Fixing Screws, #8
• Documentation Pack
• RayNet Network Cable, 2m
