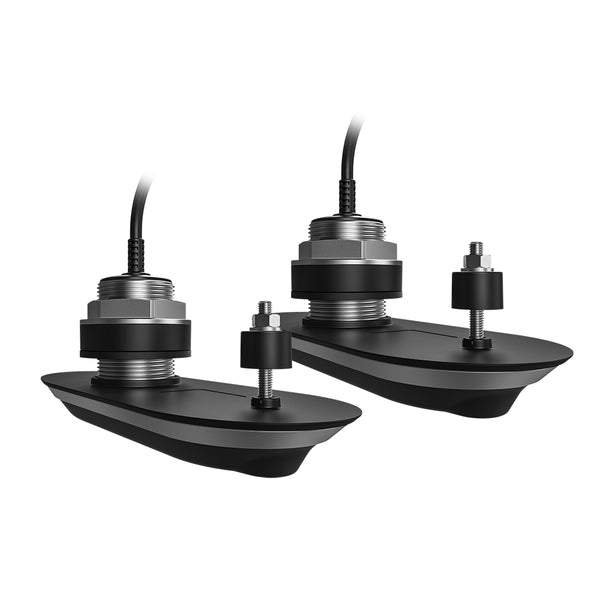

Raymarine RV-420 Stainless Steel Thru-Hull RealVision 3D 20 - Pair

Raymarine

SKU#

  • $2,359.99 USD
    Unit price per
In Stock
Out of Stock
Will not ship until

Description

RealVision 3D RV-420 Stainless Steel External Thru-hull Mount Transducers with 33' Cable, Pair (T70451) by Raymarine. Measures: Depth/Temperature. Frequency: 50-60/200-350kHz. Max Power: 600W. Accommodates Deadrise: 15degree - 25degree. Tilt: 20degree. Designed for inboard or outboard boats, the RV-420 stainless steel through hull transducer system lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D sonar. The RV-420 system is a 4-channel, Wide Spectrum CHIRP transducer system with DownVision, SideVision, high frequency CHIRP fish targeting and RealVision 3D sonar inside. The transducer system has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion.

Features

  • Engineered to high standards
  • High-grade design delivers extended lifespan
  • Made with premium materials

Specifications

  • Installation: Thru-Hull
  • Material: Strainless Steel
  • Max. Depth (ft): 3D: 300 I DownVision: 600 I Port: 300 I Starboard: 300 I Conical: 900
  • Frequency (KHz): RealVision I High CHIRP
  • Beam Width (L/H): 3D: 180degree I Down: 60degree I Conical: 25degree
  • Records: Depth and Temperature
  • Approved Hull Material: Fiberglass, Wood
  • Cable Length (Ft): 33
  • Supported Deadrise: 5-15degree

Includes

  • RV-420P stainless steel port transducer array with 2-meter cable
  • RV-420S plastic starboard transducer array with 2-meter cable
  • RealVision 3D Transducer Y-Cable
  • RealVision 3D 8-meter (26-feet) Transducer Extension Cable
  • Anti-rotation bolt kit
  • Installation instructions
