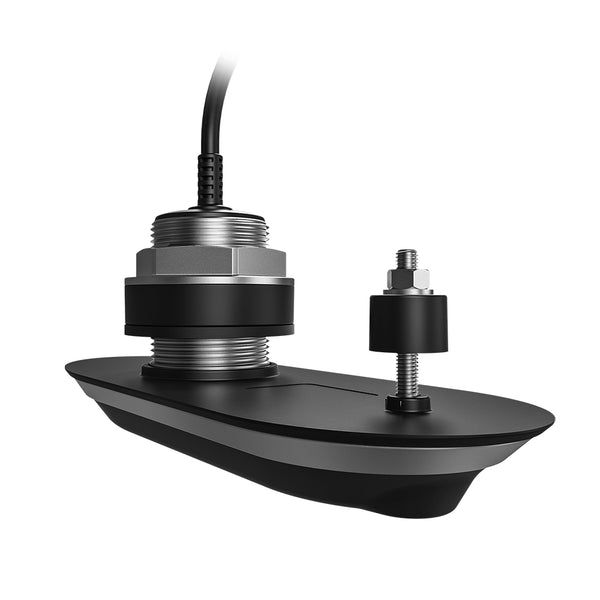

Raymarine RV-400 Stainless Steel Thru-Hull RealVision 3D 0

Description

RealVision 3D RV-400 Stainless Steel External Thru-hull Mount All-In-One Transducer with 26' Cable (A80615) by Raymarine. Measures: Depth/Temperature. Frequency: 50-60/200-350kHz. Max Power: 600W. Accommodates Deadrise: 0degree - 5degree. Tilt: 0degree. Raymarine's RV-400 stainless steel all-in-one through hull transducer is designed for inboard and outboard powerboats. The RV-400 lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D sonar. The RV-400 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision, SideVision, conical CHIRP fish targeting and RealVision 3D sonar inside. The transducer also has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, compensating automatically for vessel motion.

Features

• Engineered to high standards
• High-grade design delivers extended lifespan
• Made with premium materials

Specifications

• Installation: Thru-Hull
• Material: Strainless Steel
• Max. Depth (ft): 3D: 300 I DownVision: 600 I Port: 300 I Starboard: 300 I Conical: 900
• Frequency (KHz): RealVision I High CHIRP
• Beam Width (L/H): 3D: 180degree I Down: 60degree I Conical: 25degree
• Records: Depth and Temperature
• Approved Hull Material: Fiberglass, Metal
• Cable Length (Ft): 26
• Supported Deadrise: 0-5degree

Includes

• RV-400 stainless steel all-in-one through hull transducer with 8-meter (26-foot cable)
• Anti-rotation bolt kit
• Transducer locknut
• Installation instructions
