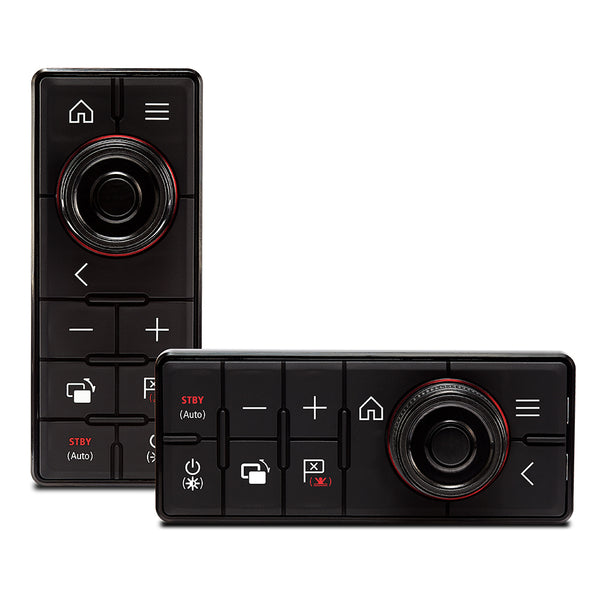

Raymarine RMK-10 System Remote Control - Portrait & Landscape Keypad

Description

RMK-10 Landscape Remote Control (T70293) by Raymarine. The new Raymarine RMK-10 Remote Keypad is an ultra-compact wired keypad accessory that provides full control of aSeries, cSeries, eSeries, eS Series and gS Series Multifunction Displays (MFDs) from any mounting location.

Features

• High quality at an affordable price
• Expertly made from premium materials
• Built to match your exact requirements

Specifications

• PoE class: Class 1
• Nominal supply voltage: 12 / 24VDC
• Operating voltage range: 10.8VDC to 31.2VDC
• Power consumption: 3.84 W
• Operating temperature: -25degreeC to +55degreeC (-13degreeF to 131degreeF)
• Storage temperature: -30degreeC to +70degreeC (-22degreeF to 158degreeF)
• Relative humidity: Maximum 75%
• Waterproof rating: IPX6
• Network / power: 1 x RayNet connector (gS Series - 1000 Mb/s plus PoE) (aSeries , cSeries, eSeries - 100 Mb/s)
• Alternate power: 1 x power connector

Includes

• Keypad
• Landscape keypad mat
• Portrait keypad mat
• Mounting gasket
• 4 x mounting fixings
• Documentation pack
• Right angled power cable 2m (6.6')
• RayNet network cable 2m (6.6')
