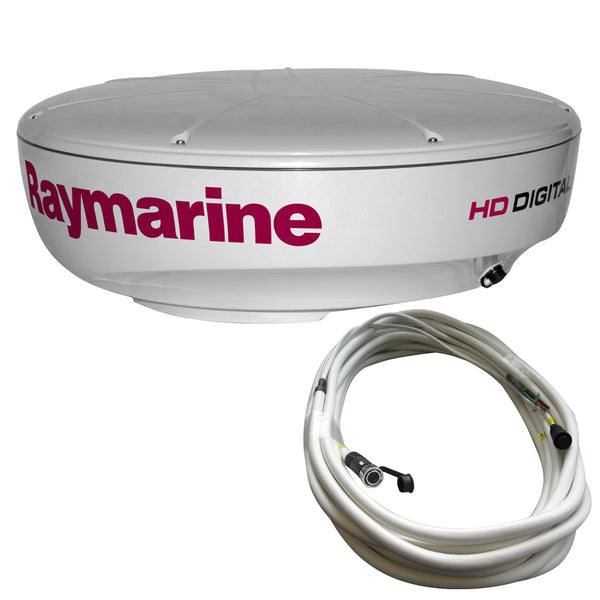

Raymarine RD418HD Hi-Def Digital Radar Dome with 10M Cable



  • $2,099.99 USD
    Unit price per
In Stock
Out of Stock
Will not ship until


HD Color 4kW 18" Radome Radar with 33' Cable (T70168) by Raymarine. Raymarine HD Color or Super HD Color open array scanner for enhanced performance and range.


  • HD Color technology delivers superior processing and target detection
  • Multi-level color target displays
  • Adaptive auto settings
  • Coastal, Harbour, Offshore and Buoy Auto modes
  • SeaTalkHS network compatible
  • New, thin radar interconnect assembly
  • Simple install, no need to open pedestal (external waterproof connector)
  • 10.8 to 32V DC operation with supplied external voltage converter
  • Field upgradeable software via Flash card
  • HD Color and Super HD Color radar technology delivers substantial improvements in range and bearing resolution


  • Signal Processing: Digital
  • Compatible With: aSeries, c Series, e Series, eS Series, gS Series, C Series, E Series, G Series Multifunction Displays
  • Peak Power Output (kW): 4.0 kW (nominal)
  • Beam Width (Nominal): 4.9degree horizontal, 25degree vertical
  • Polarization: Horizontal
  • Rotation Rate: 24 RPM
  • CE Approval: Conforms to 1999/5/EC
  • FCC Approval: Conforms to 47CFR Part 2 and Part 80
  • Dimensions: 20.5in x 9.7in (521 x 247 mm)
  • Weight: 21lbs (9.5 kg)
  • Input Voltage: 12 - 24VDC
  • Power Consumption: 40 W (20 W Standby)
  • Temperature Range: 14degreeF to 131degreeF (-10degree to +55degreeC)
  • Humidity Limit: up to 95% at 35degreeC
  • Maximum Operating Wind Speed: 100 kts
  • Maximum Range Scale: 48 nm
  • IF Frequency: 60 MHz (nominal)
  • Reciever Bandwidth: 12/3/0.7/0.5 MHz


  • Radome Radar
  • 10m RayNet Cable
