Raymarine Ray90 Modular Dual-Station VHF Black Box Radio System

Description

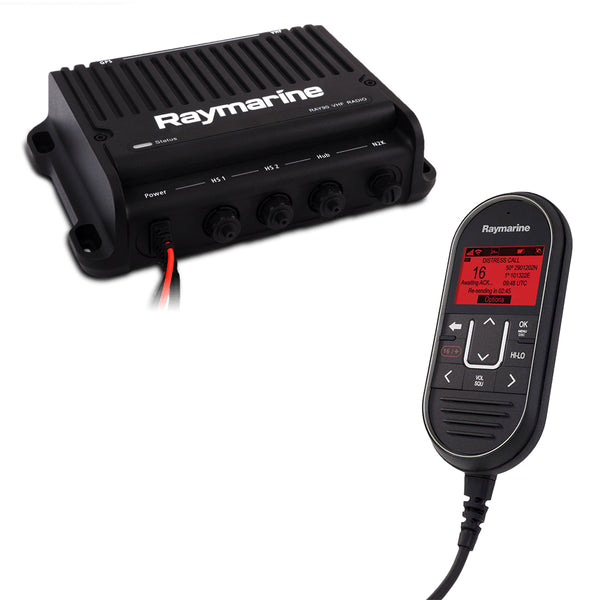

Ray90 Black Fixed Mount Modular Dual-Station VHF Radio with GPS (E70492) by Raymarine. Raymarine’s fixed mount Ray90 modular VHF radio brings multi-station communications to a whole new level of power, performance, and flexibility. The Ray90 is a black-box design with a transceiver that hides out of sight while the ergonomic RayMic handset and remote speaker provide full control of the radio with crystal clear audio.

Features

• Black box, multi-station capable VHF radio
• NEW - Wireless handset and active speaker available
• Wired handset and passive speaker included
• Optional external GPS
• Simple NMEA2000 and NMEA0183 Networking

Specifications

• Water Integrity: Complies with IPX6 & IPX7 Complies with EN60945
• Operating Temperature Range: -25°C to 55°C
• Storage Temperature Range: -25°C to 70°C
• Humidity: up to 95%
• Operating Voltage Range: 9VDC to 16VDC
• Current Consumption: Less than 6A at High Power (13.6V)
• Frequency Stability: + / - 1.5 ppm
• Power Output: High Power = 25 Watt, Low Power = 1 Watt
• Spurious emmission: Better than -36 dBm at 25W (Less than 0.25 uW)
• Maximum Deviation: +/- 5kHz
• Antenna port impedance: 50 ohms typical
• Inter Modulation Rejection: More than 70 dB
• External Passive Speaker Power: 5W (4Ohms) / 2.5W (8Ohms) (Passive)
• Hailer Speaker Power Output: 24W (4Ohms) / 12W (8Ohms)

Includes

• VHF DSC Radio (including fitted power and data cable)
• RayMic handset cradle
• RayMic handset
• 4 x Passive speaker mounting screws
  Documentation
• 4 x VHF radio mounting screws
• 4 x Handset cradle mounting screws
• Devicenet to SeaTalkng adaptor

Notes

• Drilling required
• GA150 antenna is required for GPS Receiver
