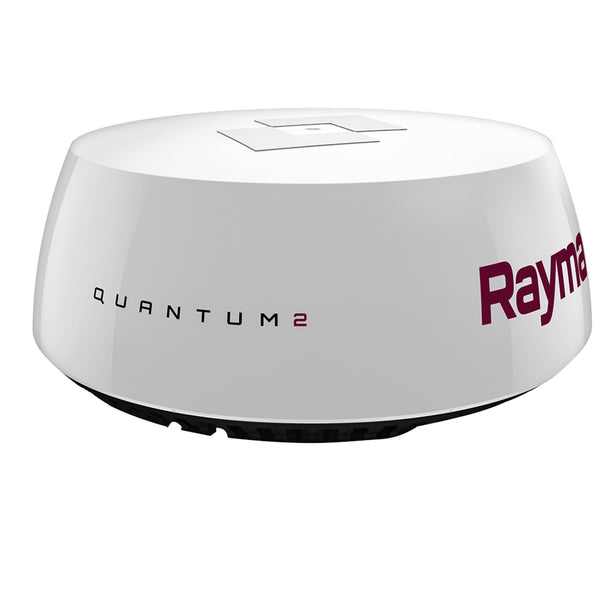

Raymarine Quantum 2 Q24D Radar Doppler with 15M Power & Data Cables



  • $2,364.99 USD
    Unit price per
In Stock
Out of Stock
Will not ship until


Quantum 2 Q24D 20W 21" Radome Radar with 49' Cable (T70417) by Raymarine®. Introducing Raymarine Quantum 2 Radar with Doppler collision avoidance technology. The Quantum 2 next generation CHIRP pulse compression radar by Raymarine provides superior target awareness at both long and extremely short ranges. Using advanced Doppler processing, the system instantly highlights moving radar contacts and color codes them to indicate whether they are inbound or outbound. Quantum with Doppler makes it easy to discern potentially dangerous targets when navigating in high-traffic areas.


  • Doppler moving target display allows for superior situational awareness at-a-glance
  • Fully automatic MARPA target tracking, along with manual MARPA mode
  • Adjustable TrueTrails target history shows the motion history of moving contacts
  • CHIRP Pulse Compression detects contacts as close as 18-feet for zero-visibility navigation
  • Simplified installation with Wi-Fi or thin wire network connectivity
  • Safe emissions – mount Quantum anywhere onboard
  • Low power consumption for extended battery life under sail


  • Dimensions: Diameter 541.0 mm Height 209.5 mm
  • Weight: 5.6 kg
  • Supply voltage: Either 12 VDC or 24 VDC nominal
  • Minimum: 10.8 VDC Maximum: 31.2 VDC
  • Waterproofing: IPX6
  • Maximum wind speed: 100kts
  • Transmit frequency: 9354 MHz to 9446 MHz
  • Antenna Type: Patch array
  • Polarization: Horizontal
  • Rotation speed: 24rpm nominal
  • Perfect for: Sailboats, RIBs, and smaller powerboats
  • Range Performance: 24NM
  • Automatic Bird Mode: No


  • Quantum 2 Radar
  • Power cable
  • M8 mounting bolts with spring washers and flat washers
  • Documentation pack (including mounting template)
