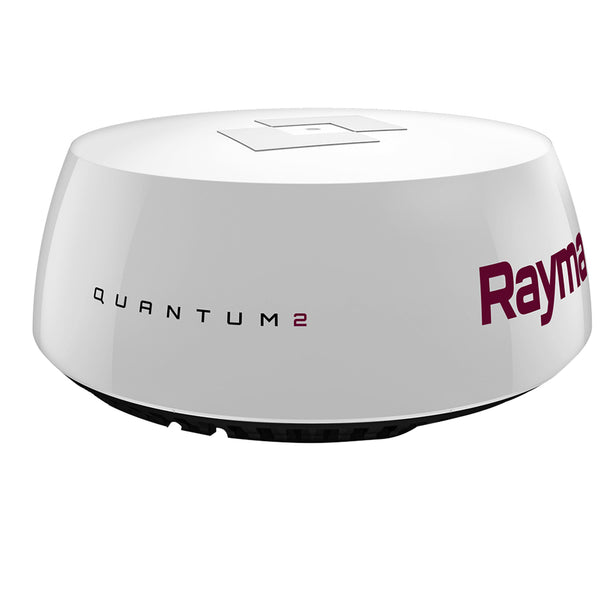

Raymarine Quantum 2 Q24D Dopper Radar - No Cable

Description

Quantum 2 Q24D 20W 21" Radome Radar (E70498) by Raymarine. Introducing Raymarine Quantum 2 Radar with Doppler collision avoidance technology. The Quantum 2 next generation CHIRP pulse compression radar by Raymarine provides superior target awareness at both long and extremely short ranges. Using advanced Doppler processing, the system instantly highlights moving radar contacts and color codes them to indicate whether they are inbound or outbound. Quantum with Doppler makes it easy to discern potentially dangerous targets when navigating in high-traffic areas.

Features

• Raymarine Quantum 2 Doppler target processing readily identifies and color codes moving radar contacts for instant recognition and reduced risk of collision
• Quantum 2 MARPA mode provides an effective means of dangerous target tracking. Raymarine MARPA target tracking is the same technology trusted by the United States Coast Guard
• Doppler moving target display allows for superior situational awareness at-a-glance
• Fully automatic MARPA target tracking, along with manual MARPA mode

Specifications

• Dimensions: Diameter 541.0 mm Height 209.5 mm
• Weight: 5.6 kg
• Supply voltage: Either 12 VDC or 24 VDC nominal
• Minimum: 10.8 VDC Maximum: 31.2 VDC
• Waterproofing: IPX6
• Operating temperature range: -10°C to +55°C
• Storage temperature range: -25°C to +70°C
• Additional storage conditions: Store upright; do not block vents on underside
• Type: X-band solid-state transmitter with pulse compression technology
• Transmit frequency: 9354 MHz to 9446 MHz
• Peak power output: 20W
• Pulse widths (3 dB): 40 ns to 14.7
• Chirp lengths: 400 ns to

Includes

• Quantum 2 Radar
• M8 mounting bolts with spring washers and flat washers
• Documentation pack (including mounting template)
