Description

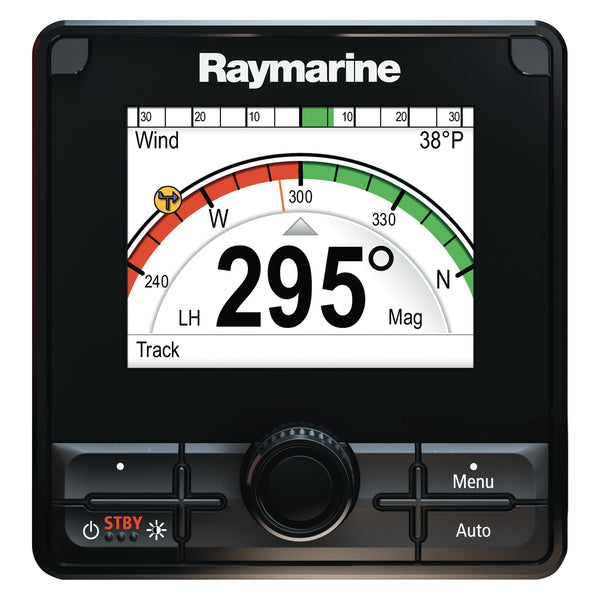

p70Rs Autopilot Control Unit by Raymarine. Complete Your Evolution Autopilot System With A New Control Head. The new control heads are available in two control styles.
Features
- 3.5" super bright oversized LCD for maximum visibility
- All weather, low power, optically bonded display technology delivers brighter colours, sharper contrast, and a wide viewing angle
- Display the pilot information in different formats with automatic 3-step setup for leisure, cruising and performance
- Simple system and group dimming / illumination
- Easy to use Lighthouse user interface with sculpted rubber keypad for precise operation in all conditions
- SeaTalkng networking for seamless connectivity to Raymarine systems and NMEA2000* networks
- New glass bridge industrial design compliments Raymarine eS and gS Series multifunction displays
- Engineered to high standards
- High-grade design delivers extended lifespan
- Made with premium materials
Specifications
- Nominal voltage: 12VDC
- Voltage range: 9 to 16VDC
- Screen size: 3.5"
- Display: Sunlight readable optically bonded LCD
- Resolution: 320 x 240 QVGA
- Colours: 16 bit colour (64K colours)
- Colour Palettes: Four colour pallettes - two day, inverse and red / black
- LCD Brightness: 1200 nit
- Power consumption: 1.6 Watts
- Connections: SeaTalk & SeaTalkng compliant with NMEA2000 marine networks
- Operating temperature: -25degreeC to 55degreeC (-13degreeF to 131degreeF)
- Storage temperature: -30degreeC to 70degreeC (-22degreeF to 158degreeF)
- Relative humidity: 93% max
- Waterproofing: IPX6
- Conformance: Europe 2004/108/EC Australia and New Zealand C-Tick compliance level 2
