Raymarine Magnum 12kW Pedestal



  • $5,599.99
    Unit price per
In Stock
Out of Stock
Will not ship until

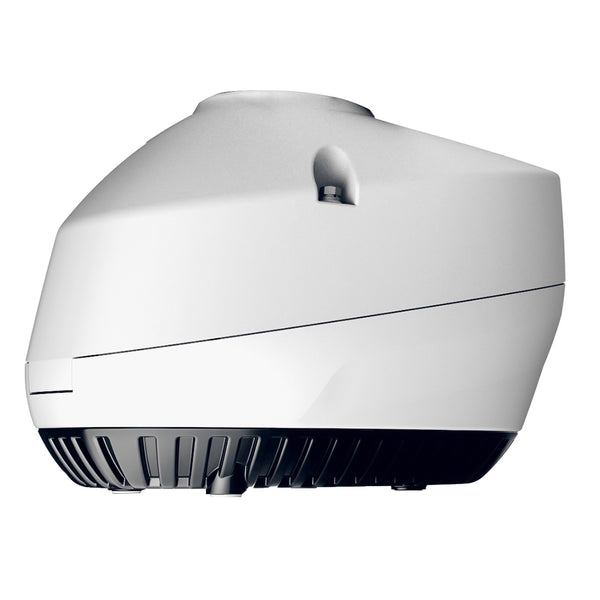

Magnum 12kW Open Array Radar Pedestal with 33' Cable (E70487) by Raymarine®. Magnum high performance open array radars bring long range performance and unmatched small target radar imaging to Raymarine multifunction navigation displays. Employing many of the same radar technologies trusted by the United States Coast Guard, Magnum offers enhanced target tracking and reliable performance, all packaged in a sleek open-array pedestal built to withstand the elements. Magnum is ideal for blue water vessels. The perfect companion to Raymarine’s award-winning Axiom® and Axiom Pro multifunction navigation displays (MFD) running LightHouse 3, Magnum is also backwards compatible with legacy models including: a, c, e, eS, gS, G Series MFDs (Not all Magnum features are available on all legacy MFDs).


  • Superior Bird Mode
  • Enhanced Radar Imaging
  • Best in Class Target Tracking
  • True Trails
  • Real Time Heading Updates


  • Rotation Rate: 24 rpm / 48 rpm (Automatic high-speed mode improves tracking of fast moving contacts at ranges of 3 miles or less. MFD dependent.)
  • Real-Time Heading Refresh (with Heading Sensor): Yes
  • True Trails (with Heading Sensor): Yes
  • Operating Temperature Range: 14°F to 131°F (-10°C to +55°C) D6
  • Non-Operating Temperature Range: -20°C to +70°C C6
  • Waterproofing Standard: IPX6


  • Pedestal
  • Mounting template
  • Denso paste
  • Lifting sling
  • 4 x Stud
  • 4 x Plain washer
  • 4 x Spring washer
  • 8 x Nut
  • Cable tightening tool
  • 2 x VCM100 mounting screw
  • 3 x VCM100 cable clamp mounting screw
  • VCM100 Voltage Converter Module
  • VCM100 cable clamp


  • Pedestal only. Antenna is not included.
