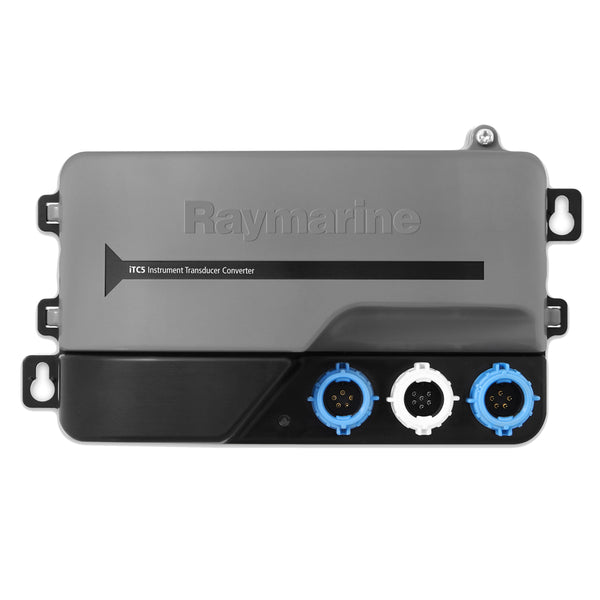

Raymarine ITC-5 Analog to Digital Transducer Converter - Seatalkng

Description

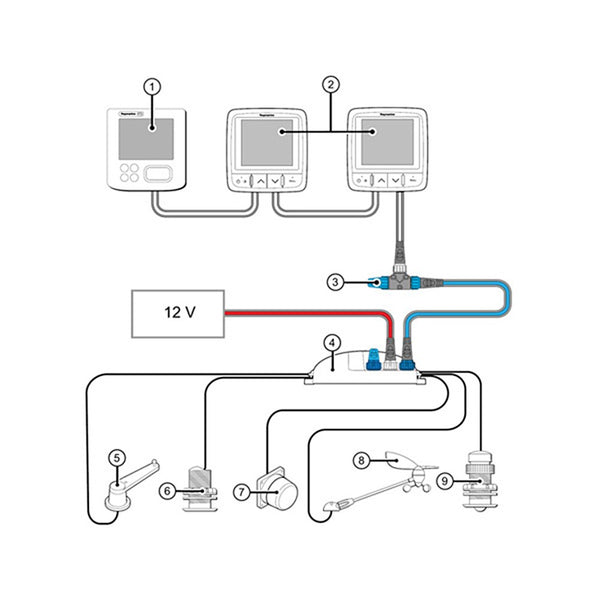

iTC-5 Transducer Signal Converter by Raymarine. The Raymarine iTC-5 converts analogue transducer signals used in i70, ST70+ and ST70 instrument systems to SeaTalkng. Transducers for Speed/Temperature, Depth, Wind, Rudder Angle and Fluxgate Compass can be connected to the one iTC-5 unit, eliminating the need for multiple ST70 pods. Extended STng systems can support multiple iTC-5 units. SeaTalkng connections at the base of the unit simply connect the iTC-5 unit into the SeaTalkng backbone.

Features

• Engineered to high standards
• High-grade design delivers extended lifespan
• Made with premium materials

Specifications

• Nominal supply voltage: 12 VDC
• Operating voltage range: 9 - 16 VDC
• Current: <150 mA peak operating current
• Power consumption: Typical: 1.5 W
• Environmental: Installation environment:
• Operating temperature = 5°F to +131°F (-15°C to +55°C)
• Storage temperature = -13°F to +158°F (-25°C to +70°C)
• Relative humidity: max 95% Splash proof to IPX2

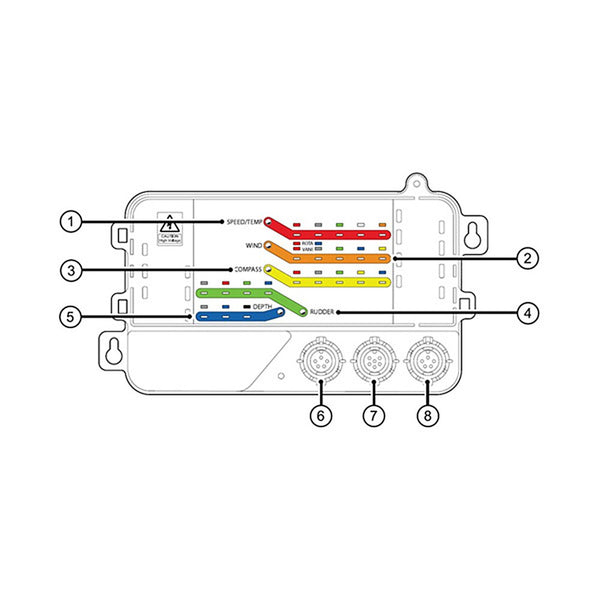

• Data connections: SeaTalkng backbone, 1 x SeaTalkng spur, 5 x transducer connections with spade terminals
• Conformance: Europe - 2004/108/EC, Australia and New Zealand - C-Tick Compliance Level 2

Notes

• Please note the ST40/i40/i50/i60 and ST60+ displays cannot calibrate the iTC-5. Only the i70 has full transducer calibration. The ST70/ST70+ can calibrate the Depth, Wind and Speed/Temp transducers (not Rudder or Compass)
• If you don't have an ST70/ST70+ or i70 in your system, then the ST40/i40/i50/i60/ST60+ displays must be interfaced directly to the relevant analogue transducers
