Raymarine EV-400 Sail Evolution Autopilot

Description

Evolution EV-400 Electromechanical Autopilot Kit (T70161) by Raymarine.

Features

• Heavy-duty, 30 Amp output for Type 3 Drives or ZF Sail Pod Drive Systems
• Evolution Ai for superior performance
• No calibration required
• SeaTalkNG Network Compatible
• ACU-400 auxiliary power to SeaTalkNG network

Specifications

• ACU Nominal Power supply: 12 V or 24 V
• ACU Operating voltage range: 10.8 V to 31.2 VDC
• ACU Power consumption (standby) - main power supply: 300 mA (12 / 24 V)
• ACU Power consumption(standby) - SeaTalkng power supply: 20 mA (12 V)
• ACU SeaTalkng LEN (Load Equivalency Number): 1
• ACU SeaTalkng Power out: 3 A at 12 V (fuse protected at 3 A)
• ACU Waterproofing rating: drip resistant
• ACU Operating temperature: -20degreeC to +55degreeC (-4degreeF to +131degreeF)
• ACU Relative Humidity: max 93%
• ACU Weight: 2.2 kg (4.84 lbs)
• EV Sensor Nominal Power supply: 12 V (powered by SeaTalkng system)
• EV Sensor Operating voltage range: 10.8 V to 15.6 VDC
• EV Sensor Power consumption: 30 mA
• EV Sensor SeaTalkng LEN (Load Equivalency Number): 1
• EV Sensor Waterproofing rating: IPX 6
• EV Sensor Operating temperature: -20degreeC to +55degreeC (-4degreeF to +131degreeF)
• EV Sensor Relative Humidity: max 93%
• EV Sensor Weight: 0.29 kg (0.64 lbs)

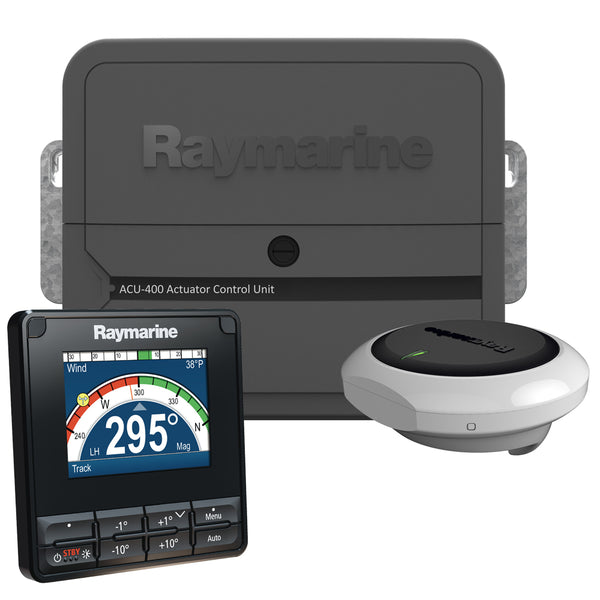

Includes

• EV-1 Sensor Core
• p70 Autopilot Control Head
• ACU-400 Actuator Control Unit (Includes the M81105 Rotary Rudder Reference)
• Evolution Cabling Kit
• EV Unit O-Ring Pack (set of 2)
• Wall Mounting Bracket
