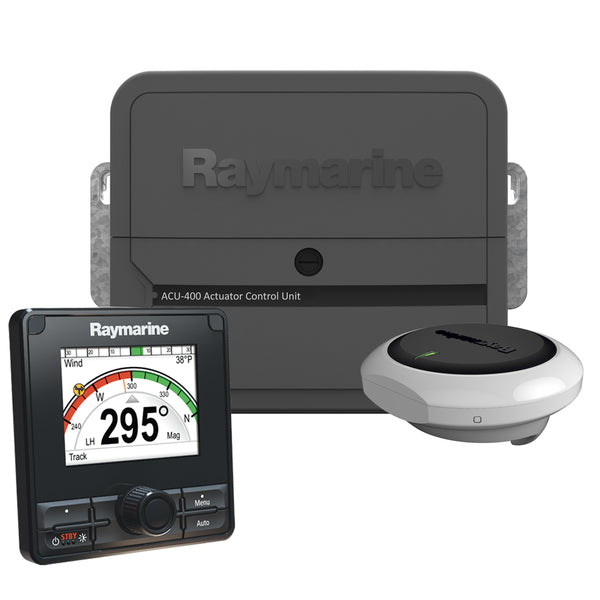

Raymarine EV-400 Power Evolution Autopilot

Raymarine

SKU#

  • $3,499.99 USD
    Unit price per
In Stock
Out of Stock
Will not ship until

Description

Evolution EV-400 Electromechanical Autopilot Kit (T70161) by Raymarine.

Features

  • Heavy-duty, 30 Amp output for Type 3 Drives or Constant Running Pumps
  • Evolution Ai for superior performance
  • No calibration required
  • SeaTalkNG Network Compatible
  • ACU-400 auxiliary power to SeaTalkNG network

Specifications

  • ACU Nominal Power supply: 12 V or 24 V
  • ACU Operating voltage range: 10.8 V to 31.2 VDC
  • ACU Power consumption (standby) - main power supply: 300 mA (12 / 24 V)
  • ACU Power consumption(standby) - SeaTalkng power supply: 20 mA (12 V)
  • ACU SeaTalkng LEN (Load Equivalency Number): 1
  • ACU SeaTalkng Power out: 3 A at 12 V (fuse protected at 3 A)
  • ACU Waterproofing rating: drip resistant
  • ACU Operating temperature: -20degreeC to +55degreeC (-4degreeF to +131degreeF)
  • ACU Relative Humidity: max 93%
  • ACU Weight: 2.2 kg (4.84 lbs)
  • EV Sensor Nominal Power supply: 12 V (powered by SeaTalkng system)
  • EV Sensor Operating voltage range: 10.8 V to 15.6 VDC
  • EV Sensor Power consumption: 30 mA
  • EV Sensor SeaTalkng LEN (Load Equivalency Number): 1
  • EV Sensor Waterproofing rating: IPX 6
  • EV Sensor Operating temperature: -20degreeC to +55degreeC (-4degreeF to +131degreeF)
  • EV Sensor Relative Humidity: max 93%
  • EV Sensor Weight: 0.29 kg (0.64 lbs)

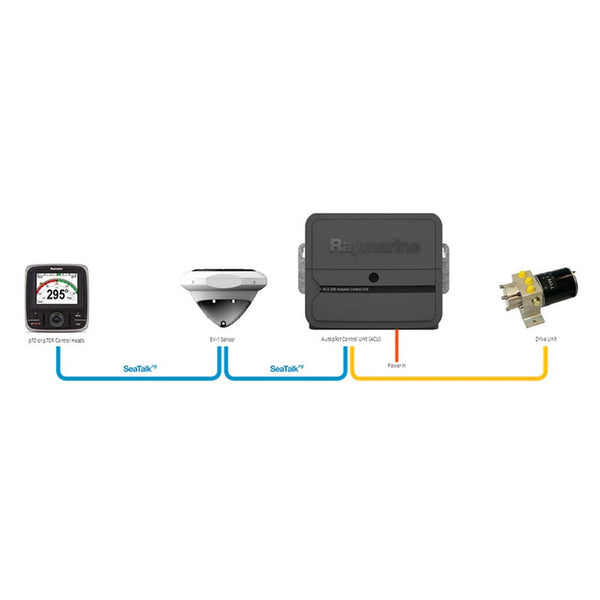

Includes

  • EV-1 Sensor Core
  • p70R Autopilot Control Head
  • ACU-400 Actuator Control Unit (Includes the M81105 Rotary Rudder Reference)
  • Evolution Cabling Kit
  • EV Unit O-Ring Pack (set of 2)
  • Wall Mounting Bracket
