Raymarine EV-200 Power Hydraulic Evolution Autopilot

Description

Evolution EV-200 Hydraulic Autopilot Kit (T70157) by Raymarine. Includes Computer, Control Unit, Type 1 Pump.

Features

• Includes p70R Autopilot Controller
• Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays
• Engineered to high standards
• High-grade design delivers extended lifespan
• Made with premium materials

Specifications

• ACU Nominal Power supply: 12 V or 24 V
• ACU Operating voltage range: 10.8 V to 31.2 VDC
• ACU Power consumption (standby) - main power supply: 300 mA (12 / 24 V)
• ACU Power consumption(standby) - SeaTalkng power supply: 20 mA (12 V)
• ACU SeaTalkng LEN (Load Equivalency Number): 1
• ACU SeaTalkng Power out: 3 A at 12 V (fuse protected at 3 A)
• ACU Waterproofing rating: drip resistant
• ACU Operating temperature: -20degreeC to +55degreeC (-4degreeF to +131degreeF)
• ACU Relative Humidity: max 93%
• ACU Weight: 2.2 kg (4.84 lbs
• EV Sensor Nominal Power supply: 12 V (powered by SeaTalkng system)
• EV Sensor Operating voltage range: 10.8 V to 15.6 VDC
• EV Sensor Power consumption: 30 mA
• EV Sensor SeaTalkng LEN (Load Equivalency Number): 1
• EV Sensor Waterproofing rating: IPX 6
• EV Sensor Operating temperature: -20degreeC to +55degreeC (-4degreeF to +131degreeF)
• EV Sensor Relative Humidity: max 93%
• EV Sensor Weight: 0.29 kg (0.64 lbs)

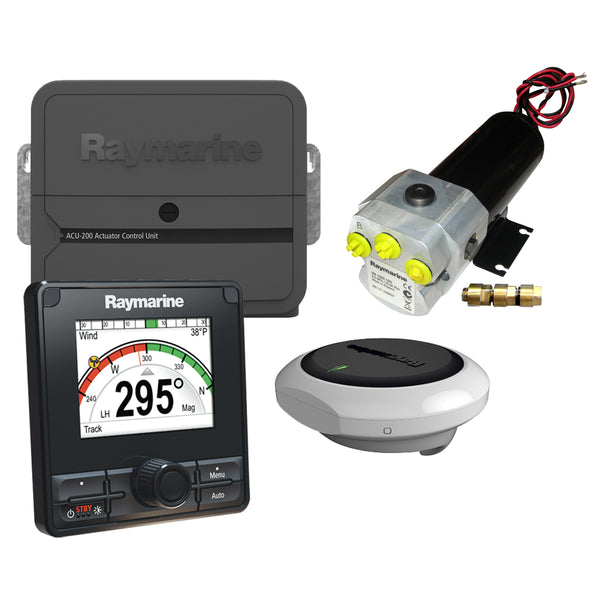

Includes

• EV-1 Sensor Core
• p70R Autopilot Control Head
• ACU-200 Actuator Control Unit
• Autopilot Pump
• Evolution Cabling Kit
• EV Unit O-Ring Pack (set of 2)
• Wall Mounting Bracket
