Raymarine EV-100 Wheel Pilot with p70s Controller Corepack Only - No Drive Unit
Curated By Our Captains
We test/know our products
Low Price Guarantee
We will beat all competitors
Contact a Raymarine Specialist
Monday - Friday | 8:30AM to 6PM EST

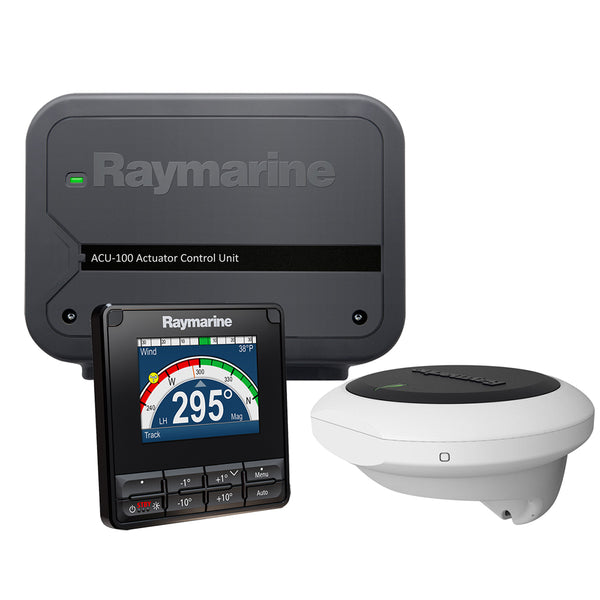

Raymarine EV-100 Wheel Pilot with p70s Controller Corepack Only - No Drive Unit

Raymarine

SKU#

  • $1,349.99 USD
    Unit price per
In Stock
Out of Stock
Will not ship until

Description

Evolution EV-100 Hydraulic Autopilot Kit (T70281) by Raymarine. Includes Computer, Compass, Control Unit. The EV-100 Power autopilot system consists of the revolutionary EV-sensor core, the fully-sealed and compact ACU-100, and Raymarine's new highly efficient 0.5 litre hydraulic pump. Perfect for vessels with single outboard engines and hydraulic steering, install the entire system above or below decks as required, and benefit from world-leading autopilot performance at a truly head-turning price.

Features

  • High quality at an affordable price
  • Expertly made from premium materials
  • Built to match your exact requirements

Specifications

  • ACU 100 Nominal Power supply: 12 V
  • ACU 100 Operating voltage range: 10.8 V to 15.6 VDC
  • ACU 100 Drive Current output: maximum continuous 7 A at supply voltage
  • ACU 100 Power consumption (standby) main power supply: 300 mA at 12 V
  • ACU 100 Data Connections: SeaTalkng
  • ACU 100 Operating temperature: -20°C to +55°C (-4°F to +131°F)
  • ACU 100 Connections: Rudder reference sensor; drive motor; ground
  • ACU 100 Waterproof rating: connector panel IPX2; Drive electronics IPX6
  • EV Sensor Nominal Power supply: 12 V (powered by SeaTalkng system)
  • EV Sensor Operating voltage range: 10.8 V to 15.6 VDC
  • EV Sensor Power consumption: 30 mA
  • EV Sensor SeaTalkng LEN (Load Equivalency Number): 1
  • EV Sensor Waterproofing rating: IPX 6
  • EV Sensor Operating temperature: -20°C to +55°C (-4°F to +131°F)
  • EV Sensor Relative Humidity: max 93%
  • EV Sensor Sensors: 3-axis digital accelerometer; 3-axis digital compass and 3-axis gyro digital angular rate sensor
  • EV Sensor Weight: 0.29 kg (0.64 lbs)

Includes

  • EV-1
  • ACU-100
  • p70R
  • Evolution Cabling Kit
  • Documents
