Raymarine EV-100 Wheel Evolution Autopilot

Description

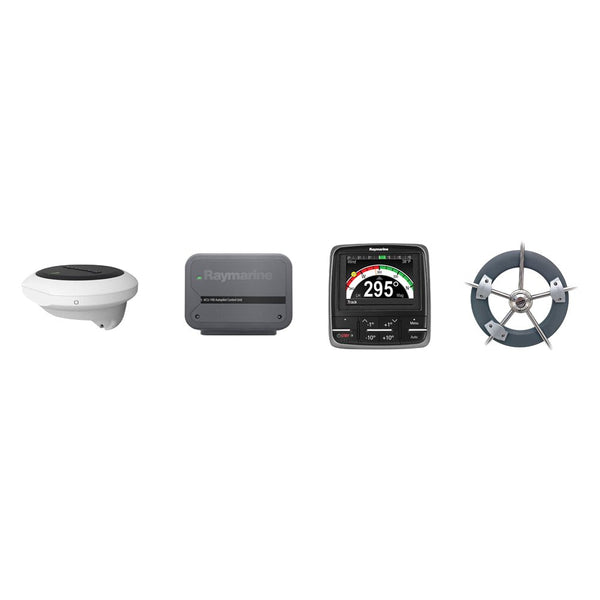

Evolution EV-100 Wheel Autopilot Kit (T70152) by Raymarine. Includes Computer, Control Unit, Wheel Drive.

Features

• A complete autopilot-in-a-box
• Evolution Ai for superior performance
• No calibration required
• Ideal for small, hydraulically steered powerboats
• Built-in trolling patterns
• For 12V DC power systems

Specifications

• ACU 100 Nominal Power supply: 12 V
• ACU 100 Operating voltage range: 10.8 V to 15.6 VDC
• ACU 100 Drive Current output: maximum continuous 7 A at supply voltage
• ACU 100 Power consumption (standby) main power supply: 300 mA at 12 V
• ACU 100 Data Connections: SeaTalkng
• ACU 100 Operating temperature: -20degreeC to +55degreeC (-4degreeF to +131degreeF)
• ACU 100 Connections: Rudder reference sensor; drive motor; ground
• ACU 100 Waterproof rating: connector panel IPX2; Drive electronics IPX6
• EV Sensor Nominal Power supply: 12 V (powered by SeaTalkng system)
• EV Sensor Operating voltage range: 10.8 V to 15.6 VDC
• EV Sensor Power consumption: 30 mA
• EV Sensor SeaTalkng LEN (Load Equivalency Number): 1
• EV Sensor Waterproofing rating: IPX 6
• EV Sensor Operating temperature: -20degreeC to +55degreeC (-4degreeF to +131degreeF)
• EV Sensor Relative Humidity: max 93%
• EV Sensor Weight: 0.29 kg (0.64 lbs)

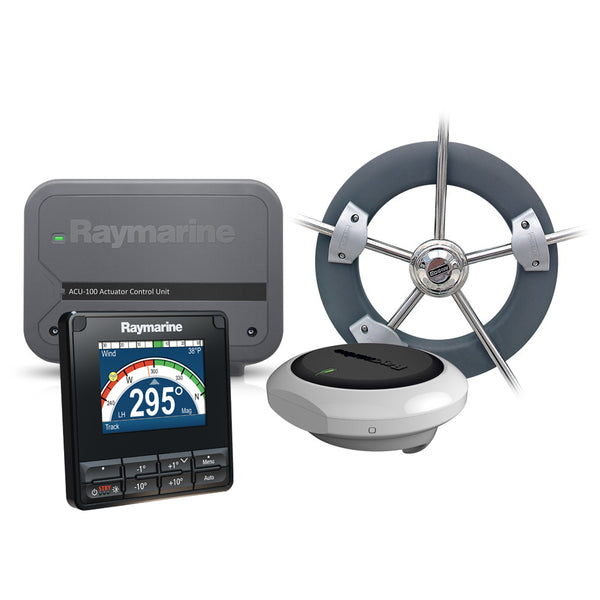

Includes

• p70s Autopilot Controller
• EV-1 Sensor Core
• p70s Autopilot Control Head
• ACU-100 Actuator Control Unit
• Evolution Cabling Kit
• EV Unit O-Ring Pack (set of 2)
• Wall Mounting Bracket
