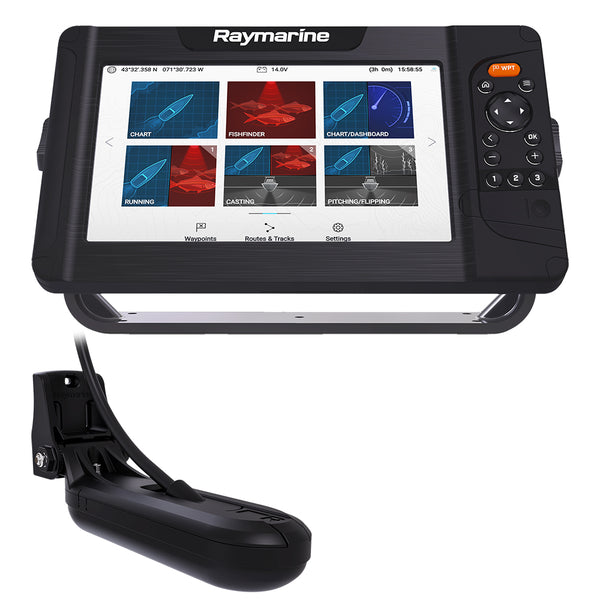

Raymarine Element 9 HV Combo with HV-100 Transducer



  • $949.99 USD
    Unit price per
In Stock
Out of Stock
Will not ship until


Element 9 HV 9" Fish Finder/Chartplotter with HV-100 HyperVision Transducer without Charts (E70534-05) by Raymarine


  • Bright and Rugged: Sunlight viewable displays with integrated GPS/GNSS receiver
  • Superior HyperVision: 1.2 megahertz CHIRP sonar technology delivers much higher resolution imaging compared to conventional side and down scanning sonars
  • RealVision 3D Built-In: Accurately identify the location of ledges, channel beds, and other contour changes
  • Fast Quad-Core Processor: For instantaneous chart re-draw and sharp 3D imaging
  • Simple LightHouse Sport Operating System: Optimized for fishing, the LightHouse Sport OS is fast and easy-to-learn
  • Intuitive Controls: An oversized waypoint key for marking your favorite spots and three user-programmable keys


  • Display Size: 9.0" Optically Bonded LCD
  • Display Resolution: 800 x 480 WVGA
  • Brightness: 1,500 nits
  • Overall Dimensions W x H x D: 287 x 161 x 62mm (11.3 x 6.3 x 2.4 inches)
  • Product Weight: 5.0 lbs
  • Water Ingress Protection: IPx6 and IPx7
  • Power Consumption (max 12VDC): 20 Watts
  • GNSS / GPS: Built-in GNSS Receiver: GPS/GLONASS
  • Sonar Connection: 15 pin HyperVision type connector
  • NMEA2000: 1 x NMEA2000 port
  • SeaTalkng: Requires A06045 Devicenet female (F) adapter cable - 400mm


  • Element Fish Finder/Chartplotter
  • Trunnion bracket with mounting hardware
  • Surface mount kit with mounting hardware
  • Sun cover
  • Power / NMEA2000 1.5m cable
  • Documentation pack
  • HV-100 Transucer with 6m cable
  • Transom bracket with mounting hardware
  • 5 x P-clips with mounting hardware
  • Escutcheon plate with mounting hardware
