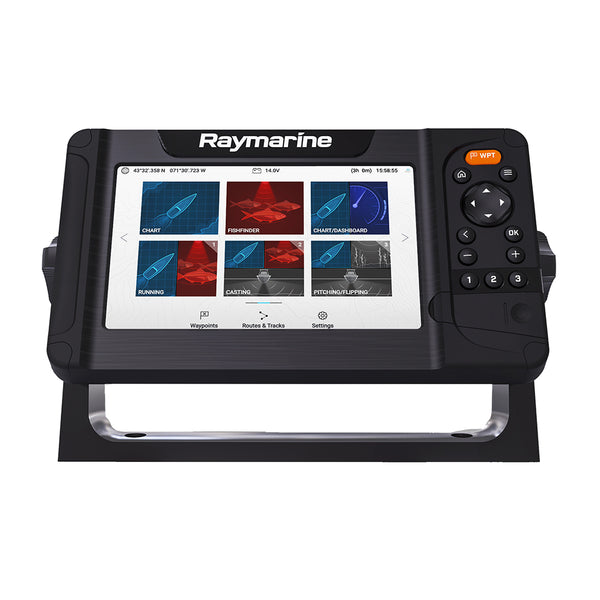

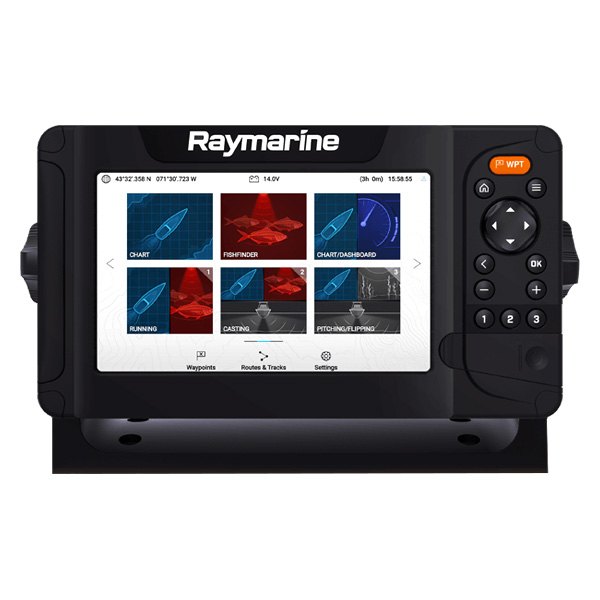

Raymarine Element 7 HV Combo with Lighthouse North America Chart - No Transducer

Raymarine

SKU#

  • $649.99 USD
    Unit price per
In Stock
Out of Stock
Will not ship until

Description

Element™ 7 HV 7" Fish Finder/Chartplotter with LightHouse NC2 US Charts without Transducer (E70532-00-102) by Raymarine. Knowledge is power - and the Element™ CHIRP sonar/GPS series from Raymarine gives you the upper hand when hunting for fish and their habitat. Delivering the sharpest view of the underwater world, Element’s HyperVision™ 1.2 megahertz sonar technology, turns up the resolution of DownVision, SideVision, and RealVision 3D to a new level of precision imaging and fish identification, letting you see structures, vegetation, and fish with amazing life-like clarity.

Features

  • Bright and Rugged: Sunlight viewable displays with integrated GPS/GNSS receiver
  • RealVision™ 3D Built-In: Accurately identify the location of ledges, channel beds, and other contour changes
  • Simple LightHouse Sport Operating System: Optimized for fishing, the LightHouse Sport OS is fast and easy-to-learn
  • Intuitive Controls: An oversized waypoint key for marking your favorite spots and three user-programmable keys
  • Make Your Own Maps: Raymarine RealBathy™ personal sonar mapping and Navionics SonarCharts Live support

Specifications

  • Display Size: 7.0" Optically Bonded LCD
  • Display Resolution: 800 x 480 WVGA
  • Brightness: 1,500 nits
  • Product Weight: 3.0 lbs
  • Voltage: 12VDC (8V to 16VDC)
  • CHIRP Sonar Depth: 274m (900')
  • Ethernet: N/A
  • NMEA0183: N/A
  • USB: N/A
  • Wi-Fi: 802.11 b / g / n
  • BlueTooth: 4.0 + Low Energy + Power Class 1.5
  • Internal Memory: 8GB Solid State

Includes

  • Element™ Fish Finder/Chartplotter
  • Trunnion bracket with mounting hardware
  • Surface mount kit with mounting hardware
  • Sun cover
  • Power / NMEA2000 1.5m cable
  • Documentation pack
  • HV-100 Transucer with 6m cable
