Raymarine ECI-100 Universal Engine & Control Interface

Description

ECI-100 Autopilot Gateway by Raymarine. The Raymarine ECI-100 Universal Engine & Control Interface is an innovative and affordable solution for bridging engine instrumentation and drive-by-wire steering with Raymarine autopilot and navigation systems.

Features

• A simple, single point of connection for engine data and drive-by-wire autopilot control
• Affordable and uncomplicated solution eliminates the need for multiple engine and autopilot gateways
• Brings Raymarine's Evolution 9-axis sensor and adaptive autopilot control to drive-by-wire propulsion without the need for a proprietary autopilot gateway
• View engine data displays and enjoy full autopilot control alongside Raymarine's industry-leading radar, sonar and navigation technologies using a single touch screen display
• From the space saving aSeries, to flagship big screen gS Series, engine information displays and autopilot control are available on any display running LightHouse v8 or later
• Access easy to customize displays to show engine performance data, fuel consumption, alarms, and much more
• View engine information displays on your smart phone or tablet with Raymarine mobile apps
• Simple to install ECI-100 makes engine and navigation integration a reality for virtually any size vessel

Specifications

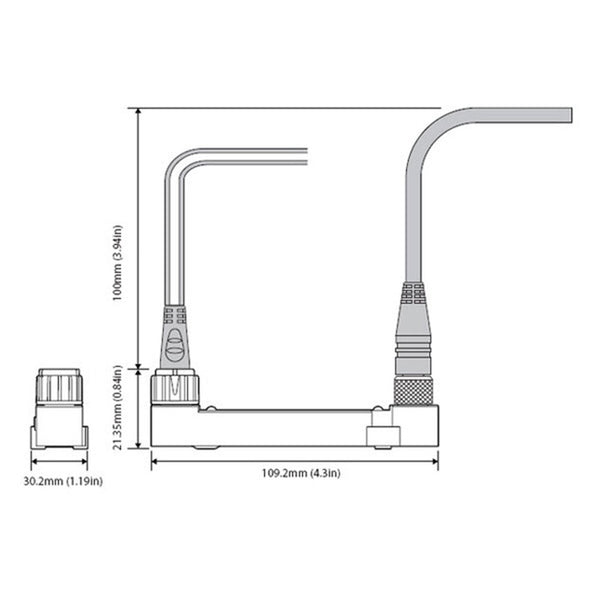

• Dimensions (L x H x D): 109.2 x 21.35 x 30.2 mm (4.29 x 0.84 x 1.18 in)
• Nominal power supply: 12VDC
• Operating voltage range: 10.8V to 31.2VDC
• Power consumption: 3.6W (maximum)
• Current: 10mA
• Fuse/breakers: 5A
• Load equivalency number: 1
• Operating temperature: -20degree to +55degreeC (+4degreeF to 131degreeF)
• Storage temperature: -30degree to +70degreeC (-22degreeF to 158degreeF)
• Relative humidity: 95%
• Waterproofing: IPX6
