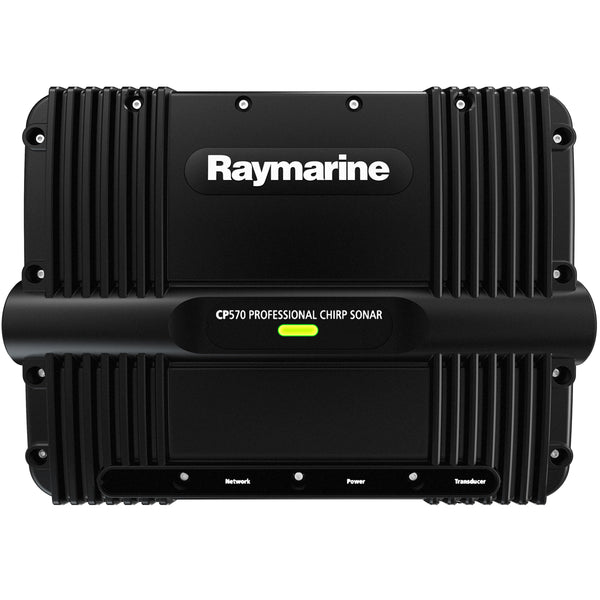

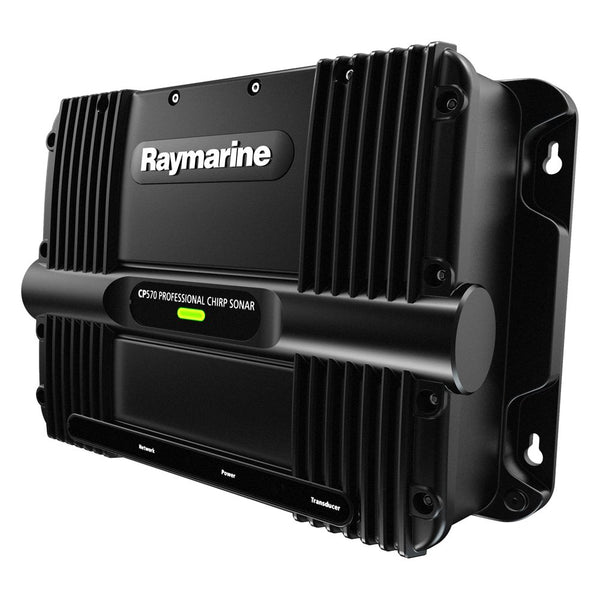

Raymarine CP570 Professional CHIRP Sonar Module



  • $2,299.99
    Unit price per
Free Shipping
In Stock
Out of Stock
Will not ship until


CP570 CHIRP Sonar Module by Raymarine. The Raymarine E70258 CP570 Professional CHIRP Sonar Module delivers high performance Sonar for tournament and professional fishing. Created for serious anglers, the Raymarine CP570 sonar module brings high-res CHIRP sonar imagery and best-in-class target separation to Raymarine multifunction displays. With its wide spectrum of frequencies and improved sensitivity, the CP570's advanced CHIRP transceiver can see through dense schools of baitfish, identify thermoclines, and target desired game fish at the same time. Rated for rough conditions and offshore use, the CP570 can intelligently filter out unwanted noise while producing high-res fish targets and reliable bottom tracking. The professional angler will appreciate the CP570's 2 fully independent sonar channels that deliver up to 4kW of combined output power and faster target identification.


  • Sonar Type: Wide Spectrum CHIRP
  • TruZoom offers magnified views of bottom structure, fish targets, and baitfish without the usual loss of resolution
  • Airmar Wide Beam transducer compatible
  • Automatic transducer identification with Airmar Xducer ID
  • IPX6 Waterproof rugged aluminum enclosure
  • Compatibility: gS Series, eSeries, cSeries, aSeries
  • Connections: Power connection, Network connection (RayNet connector) 10/100 Mb/s, Transducer connection


  • Power: Max 4kW output using 2 independent CHIRP channels
  • Frequency & Channels: Dual independent CHIRP channels from 25 to 250kHz
  • Depth Range: 10,000' (3,000M)
  • Power Consumption: 30.6W (Max.)
  • Nominal Supply Voltage: 12/24VDC
