Raymarine B75M 600W Medium Frequency CHIRP Transducer 20 Tilt Single Operation Cable for 1 Transducer Install

Description

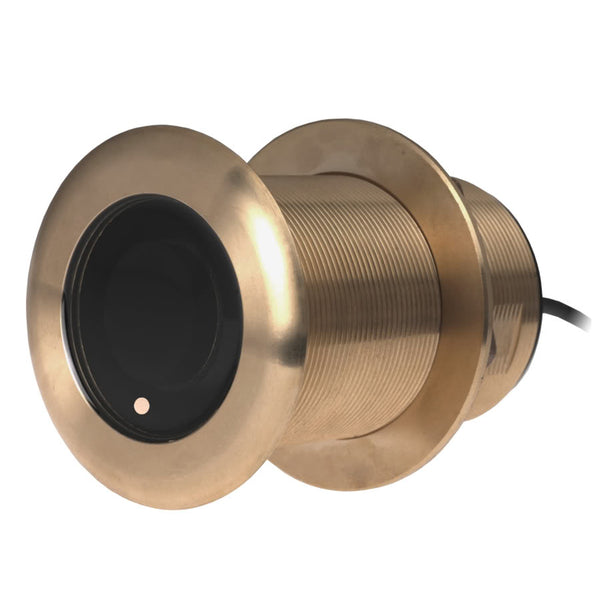

Airmar B75 Bronze Flush Thru-hull Mount Transducer with 33' Cable (A80036) by Raymarine. Measures: Depth/Temperature. Frequency: 80-130kHz. Max Power: 600W. Accommodates Deadrise: 16° - 24°. Tilt: 20°. The B75's offer high resolution benefits of CHIRP technology at an affordable price. These transducers are great options for small and medium sized trailerable boats. They also offer wider beam angles than some more expensive transducers, providing greater coverage below the vessel. Given their flush design, low-profile transducers may be more easily subjected to surface aeration at higher speeds.

Features

• Engineered to high standards
• High-grade design delivers extended lifespan
• Made with premium materials

Specifications

• Installation: Through Hull
• Material: Bronze
• Power (RMS): 600W
• Max Depth (Ft): L: 900
• Frequency (KHz): 80-130
• Beam Width (L/M): 24°-16°
• Records: Depth / Temperature
• Approved Hull Material: Fibreglass / Wood
• Cable Length (Ft/M): 33' / 10m
• Supported Deadrise / Transom Angles: 16-24° Deadrise

Includes

• Transducer
• 33' Cable

Notes

• Requires A80328 Single B75/B175 Operation Cable
