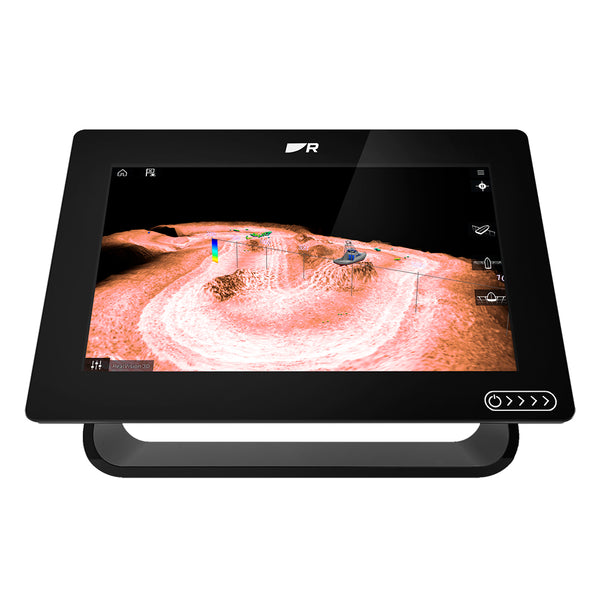

Raymarine Axiom+ 9 RV - 9" Chartplotter/Fishfinder with RV-100 T/M Transducer & Navionics+ Chart
Description
Axiom+ 9 RV 9" Fish Finder/Chartplotter with RV-100 RealVision™ Transducer, Navionics+ North America Charts (E70637-03-NAG) by Raymarine. The performance-tuned Axiom+ is a new generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision™ 3D sonar. New, higher resolution IPS displays deliver 25 percent more brightness and new day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.
Features
- Fluid and fast chart redraw of LightHouse, Navionics, and C-MAP electronic charts
- Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls
- All-weather displays are up to 25 percent brighter (up to 1800 nits)
- IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays
- Improved viewing with new LightHouse color themes, including Day and Night mode
Specifications
- Display Size: 9.0 inch High Density IPS
- Brightness: 1,500 nits
- Dimensions W x H x D: 244 x 158 x 77mm; 9.65 x 6.22 x 3.0in (Excluding trunnion and cables)
- Weight: 5lbs
- Waterproof Rating: IPX6 / IPX7
- Operating Temperature Range: -25°C to +55°C (-13°F to +131°F)
- Voltage: 12VDC (8V to 16VDC)
- Wi-Fi: 802.11 a/b/g/n
- BlueTooth: v4.0
- Languages: 24
Includes
- Trunnion bracket
- Trunnion knobs x 2
- Rear mounting brackets
- M5x58 Threaded studs x 4
- M5 Thumb nuts x 4
