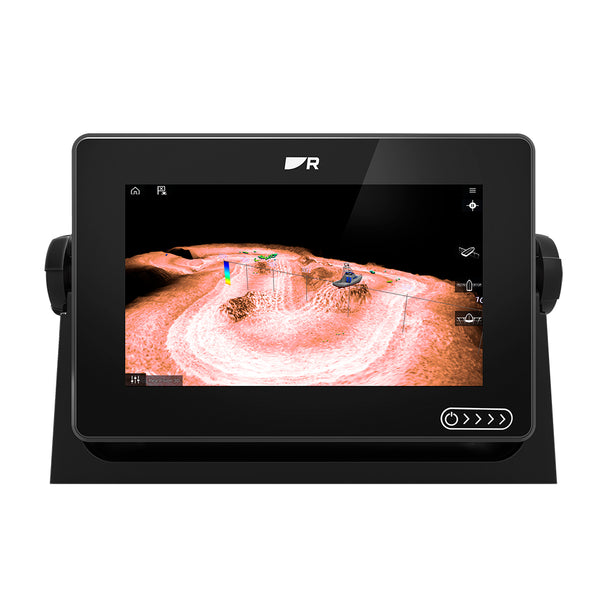

Raymarine Axiom+ 7 RV - 7" Chartplotter/Fishfinder

Description

Axiom+ 7 RV 7" Fish Finder/Chartplotter with Basemap without Transducer (E70635) by Raymarine. The performance-tuned Axiom+ is a new generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality.

Features

• Fluid and fast chart redraw of LightHouse, Navionics, and C-MAP electronic charts
• Powerful quad-core processor, plus increased onboard storage for personal data and apps
• Smart and intuitive LightHouse 3 OS makes navigating easy
• ClearCruise Augmented Reality-capable for smarter navigation decisions
• Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls

Specifications

• Display Size: 7.0 inch High Density IPS
• Display Resolution: 1024 x 600 (WSVGA)
• Display Type: Multitouch with HydroTough rugged hydrophobic coating
• Brightness: 1,500 nits
• Dimensions W x H x D: 210 x 142 x 77mm; 7.92 x 5.24 x 3.0in (Excluding trunnion and cables)
• Weight: 3 lbs
• Operating Temperature Range: -25°C to +55°C (-13°F to +131°F)
• Storage Temperature Range: -30°C to +70°C (-22°F to +158°F)
• Voltage: 12VDC (8V to 16VDC)
• Power Consumption (Full brightness): 9.84 Watts

Includes

• Display Unit (supplied with Trunnion adaptor fitted)
• Trunnion bracket
• Trunnion knobs x 2
• Suncover - Trunnion mount
• Panel mount gasket for surface/flush mounting
• M5x58 Threaded studs x 4
• M5 Thumb nuts x 4
• Documentation pack
• DeviceNet to SeaTalkng adaptor cable 120 mm (4.7 in)
• Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead)
