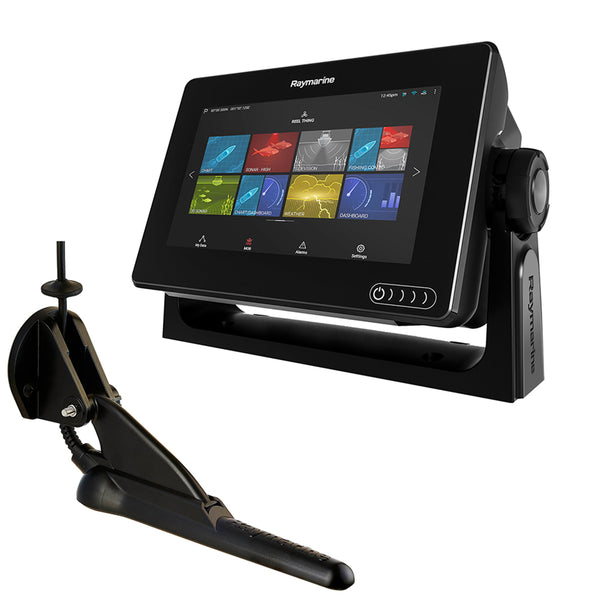

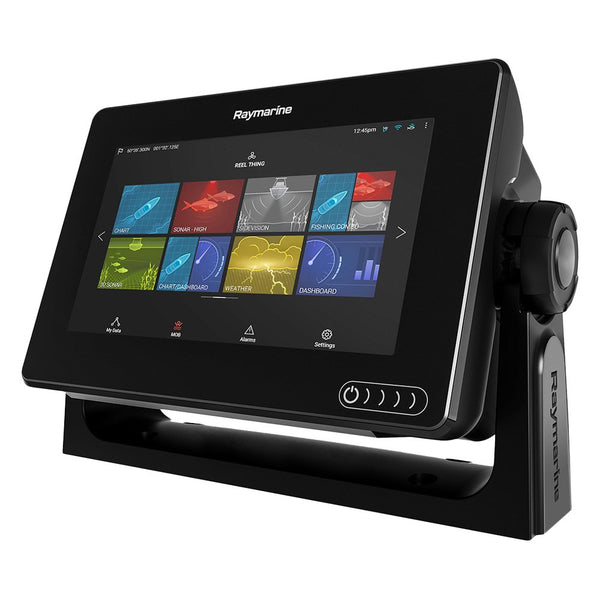

Raymarine Axiom 7 DV - 7" DV Combo with CPT-100DVS Transducer

Description

Axiom Series 7 DV 7" Multifunction Display with CPT-100DVS DownVision Transducer without Charts (E70364-02) by Raymarine. With built-in DownVision Sonar. A powerful new multifunction navigation system from Raymarine. With the all new LightHouse 3 operating system, and blazing fast quad core performance, Axiom will transform your time on the water. Axiom is expandable, so its capabilities can grow, as needed.

Features

• New LightHouse 3 OS is fast, fluid, and easy to learn.
• Rugged all-glass display optimized for flush or surface mounting.
• Support for the best charts from Navionics and LightHouse Raster
• New radar modes simplify operation along with quick access to sensitivity controls and enhanced status and range displays
• LightHouse Live View Menu: Lets you see radar adjustments in real time

Specifications

• Display Size: 7.0" Optically Bonded LCD
• Display Resolution: 800 x 480 WVGA
• Display Type: Multitouch
• Brightness: 1,200 nits
• Viewing Angle: Degrees: 60 / 70 / 70 / 70 (Top / Bottom / Left / Right)
• Dimensions: 210 x 142 x 77 mm (7.92" x 5.24" x 3.00")
• Weight: 1.52 kg (3.35 lbs)
• Mounting: Top, Flush, Front, Bracket
• Waterproof Rating: IPX6 / IPX7
• Operating Temperature: -25°C to +55°C (-13°F to 131°F)
• Storage Temp: -30°C to +70°C (- 22°F to 158°F)
• Voltage: 12VDC (8V to 16 VDC)

Includes

• MFD
• Trunnion adaptor fitted to display
• Trunnion bracket
• Trunnion knobs x 2
• Suncover - Trunnion mount
• Panel mount gasket for surface/flush mounting
• M5x58 Threaded studs x 4
• M5 Thumb nuts x 4
• Documentation pack
• Power/NMEA 2000 cable (with 1.5 m (4.92') power lead and 0.5 m (1.64') NMEA 2000 lead)
