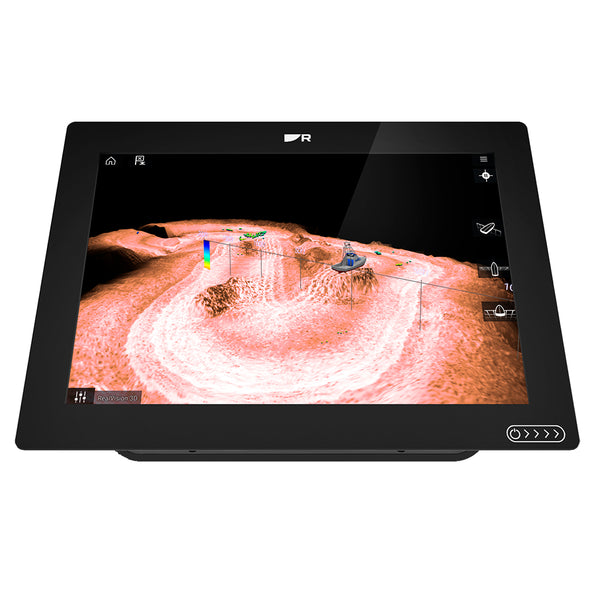

Raymarine Axiom+ 12 RV - 12" Chartplotter/Fishfinder
Description
Axiom+ 12 RV 12.1" Fish Finder/Chartplotter with Basemap without Transducer (E70639) by Raymarine. The performance-tuned Axiom+ is a new generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision™ 3D sonar. New, higher resolution IPS displays deliver 25 percent more brightness and new day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.
Features
- Powerful quad-core processor, plus increased onboard storage for personal data and appsSmart and intuitive LightHouse 3 OS makes navigating easy
- IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays
- Improved viewing with new LightHouse color themes, including Day and Night mode
- Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning
Specifications
- Display Size: 12.1 inch High Density IPS
- Display Resolution: 1280 x 800 (WXGA)
- Brightness: 1800 nits
- Dimensions W x H x D: 314 x 217 x 77mm; 12.36 x 8.54 x 3.0in (Excluding trunnion and cables)
- Waterproof Rating: IPX6 / IPX7
- Operating Temperature Range: -25°C to +55°C (-13°F to +131°F)
- Voltage: 12VDC (8V to 16VDC)
- NMEA0183: No
- USB: 1 x USB microAB
- Wi-Fi: 802.11 a/b/g/n
- BlueTooth: v4.0
- Languages: 24
Includes
- Display Unit
- Trunnion bracket
- Trunnion knobs x 2
- M5x58 Threaded studs x 4
- M5 Thumb nuts x 4
