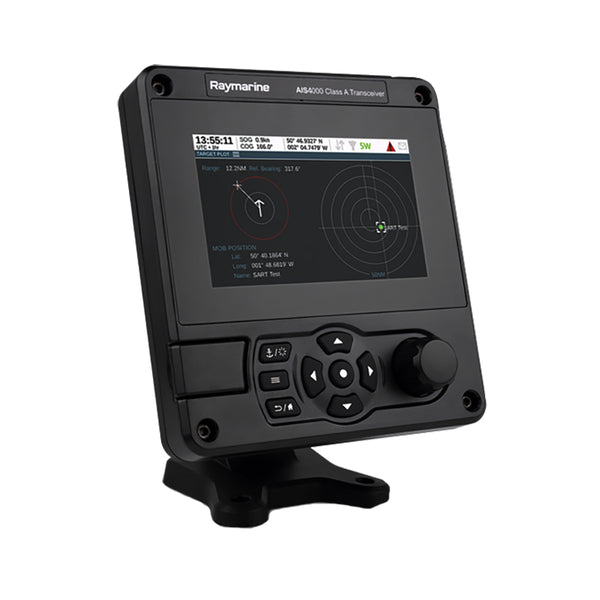

Raymarine AIS4000 Class A Automatic Identification System (AIS) Transceiver

Description

AIS4000 Class A AIS Transceiver by Raymarine. Designed for commercial vessels, luxury yachts, and SOLAS high-seas shipping, the AIS4000 Automatic Identification System (AIS) transceiver delivers robust Class A AIS network capability and is engineered to withstand the harsh weather, shock, and vibration of any vessel class. The AIS4000 boasts a high definition color display for quick access to integrated charts, alarms, and tracking. Additional support for wired and wireless networking with shipboard systems make AIS4000 a premier SOLAS and Inland Waterway-certified Class A transceiver.

Features

• Fourth generation AIS technology for expanded speed, range, and processing performance
• Full color target display with optional C-MAP ENC mapping
• Integrated Man Overboard/PLB alerting and tracking system
• CPA/TCPA data and alarms
• Large 5" 800 x 480 color display
• Integrated Wi-Fi
• NMEA 2000
• Easy-to-use, intuitive interface

Specifications

• Dimensions: 152 mm x 165 mm x 70 mm
• Weight: 1 kg
• Power supply: 12 to 24 VDC
• Power consumption: 0.5A at 12v (6W)
• VHF antenna connector: Yes
• GNSS antenna connector: Yes
• Serial inputs: 14-pin connector (cable provided)
• NMEA 2000: NMEA 2000 micro connector
• NMEA 0183 (IEC61162-2) bi-directional ports: 3
• NMEA 0183 (IEC61162-1) bi-directional ports: 3
• DGPS correction data input (ITU-R M.823-2): 1
• Alarm relay output: 1
• NMEA 2000: 1
• Operating Temperature: -15°C to +55°C

Includes

• AIS4000 Transceiver
• A80589 GNSS Antenna
• A80587 Power Cable
• A80593 2 x Data Interface Cables
• A80586 Fixings Pack
• A06045 DeviceNet to STNg Cable
• Manual
• Warranty Card
• Mounting Template
• Quick Start Guide
