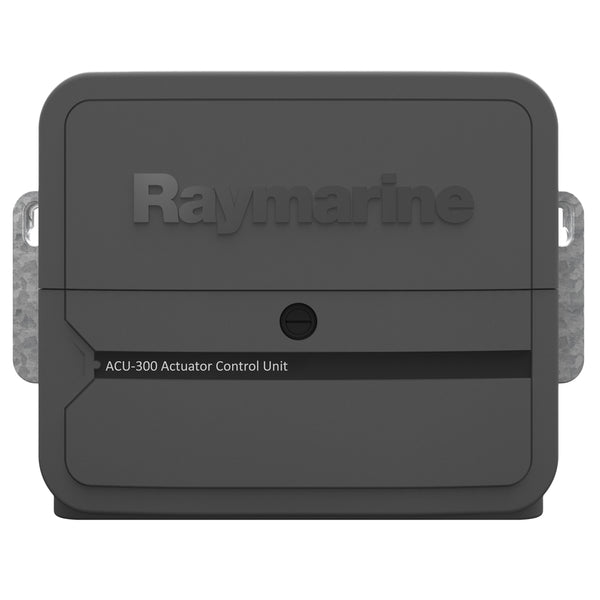

Raymarine ACU-300 Actuator Control Unit for Solenoid Contolled Steering Systems & Constant Running Hydraulic Pumps

Raymarine

SKU#

  • $1,994.99 USD
    Unit price per
In Stock
Out of Stock
Will not ship until

Description

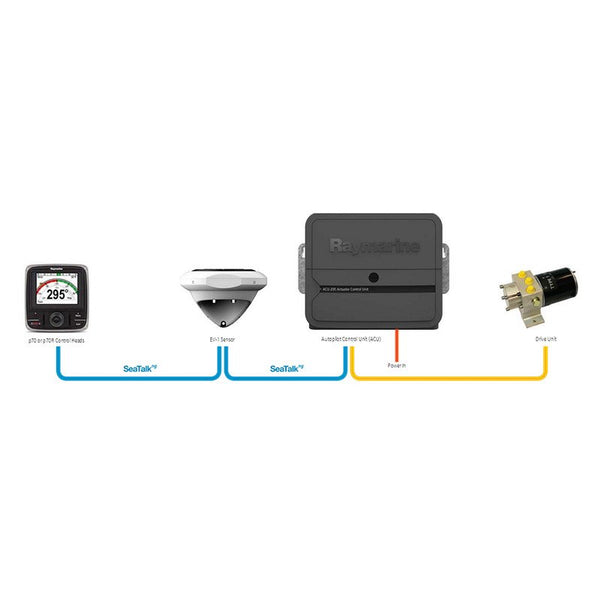

ACU-300 Actuator Control Unit by Raymarine. The rugged Raymarine ACU-300 Acuator Control Unit delivers reliable autopilot drive power and also provides power to the SeaTalkNG bus.

Features

  • Automagic - No lengthy calibration procedures to perform
  • No compass calibration required
  • Plug and play connections
  • Easy to install - Freedom from the restrictions of conventional heading sensors
  • EV sensor core can be installed above or below deck. Install upside-down or off the vessel's centre line
  • Aerospace technology - 9-axis precision monitoring of pitch, roll, yaw and heading
  • Fuel efficient - Evolution autopilots steer so accurately they will save fuel and get you to your destination faster

Specifications

  • Drive Current Output Maximum continuous 5 Amps at supply voltage
  • Drive Clutch Output No clutch connection
  • Nominal supply voltage 12 V or 24 V
  • Operating voltage range 10.8V to 31.2VDC
  • Power Consumption (standby) - Main Power Supply 300 mA (12/24V)
  • Power Consumption (standby) - SeaTalkNG Power Supply 20 mA (12V)
  • SeaTalkNG LEN (Load Equivalency Number) 1
  • SeaTalkNG Power Out 3 Amp at 12V (fuse protected at 3 Amp)
  • Data Connections SeaTalkNG
  • Operating Temperature: -20degreeC to +55degreeC (-4degreeF to +131degreeF)
  • Storage Temperature: -30degreeC to +70degreeC (-22degreeF to +158degreeF)
  • Relative Humidity: MAX 93%
  • Waterproof rating: Drip resistant
  • Dimensions (W x H x D): 285 mm x 211.5 mm x 64.5 mm (11.2 in x 8.3 in x 2.5 in)
  • Weight 2.2 kg (4.84 lbs)
  • Conformance Europe: 2004/108/EC, Australia and New
  • Zealand: C-Tick, Compliance Level 2

Includes

  • M81105 Rotary Rudder Reference
  • Sleep switch
  • Power
  • Solenoid drive out / return
  • Ground
