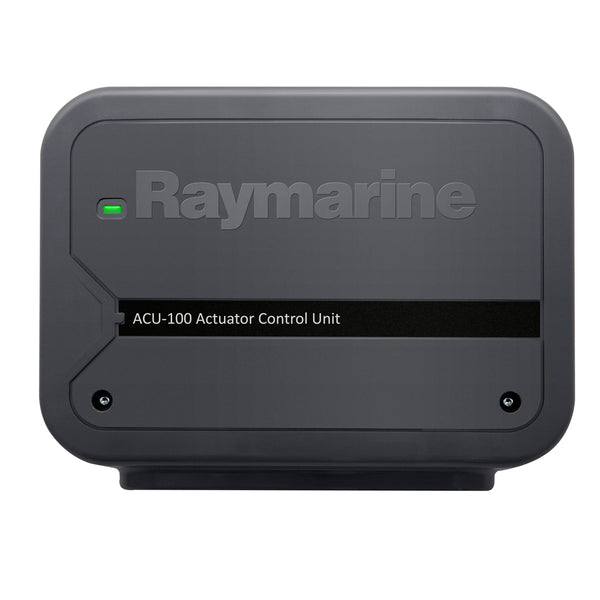

Raymarine ACU-100 Actuator Control Unit

Raymarine

SKU#

  • $499.99
    Unit price per
Free Shipping
In Stock
Out of Stock
Will not ship until

Description

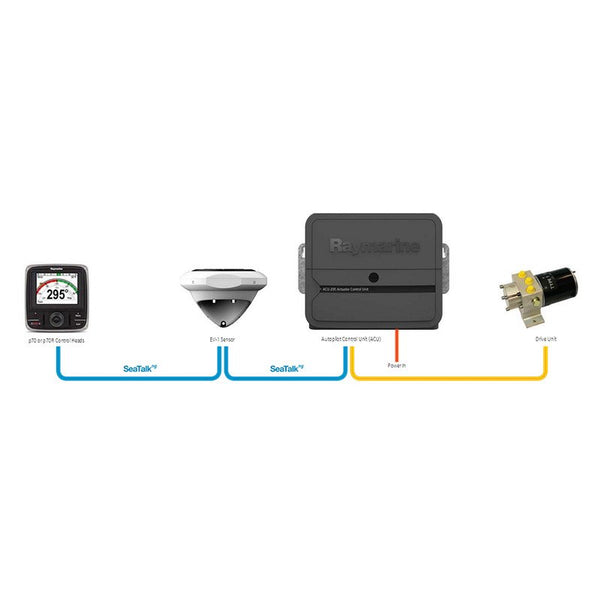

ACU-100 Actuator Control Unit by Raymarine. The rugged Raymarine ACU-100 Actuator Control Unit delivers reliable autopilot drive power and also provides power to the SeaTalkNG bus. Rudder reference sensor, Power, Drive motor, Ground.

Features

  • Automagic - No lengthy calibration procedures to perform
  • No compass calibration required
  • Plug and play connections
  • Easy to install - Freedom from the restrictions of conventional heading sensors
  • EV sensor core can be installed above or below deck. Install upside-down or off the vessel's centre line
  • Aerospace technology - 9-axis precision monitoring of pitch, roll, yaw and heading
  • Fuel efficient - Evolution autopilots steer so accurately they will save fuel and get you to your destination faster

Specifications

  • No clutch connection
  • Nominal supply voltage 12 V
  • Operating voltage range 10.8V to 15.6 VDC
  • Power Consumption (standby) - Main Power Supply 300 mA (12V)
  • Power Consumption (standby) - SeaTalkNG Power Supply No power supply to SeaTalkNG
  • SeaTalkNG LEN (Load Equivalency Number) 1
  • SeaTalkNG Power Out No power supply to SeaTalkNG
  • Data Connections SeaTalkNG
  • Operating Temperature: -20degreeC to +55degreeC (-4degreeF to +131degreeF)
  • Storage Temperature: -30degreeC to +70degreeC (-22degreeF to +158degreeF)
  • Relative Humidity: MAX 93%
  • Waterproof rating
  • Connector Panel: IPX2
  • Drive Electronics: IPX6
  • Dimensions (W x H x D) 180 mm x 140 mm x 52 mm (7.1 in x 5.5 in x <2.0 in)
  • Weight 0.6 kg (1.32 lbs)
  • Conformance Europe: 2004/108/EC, Australia and New Zealand: C-Tick, Compliance Level 2
