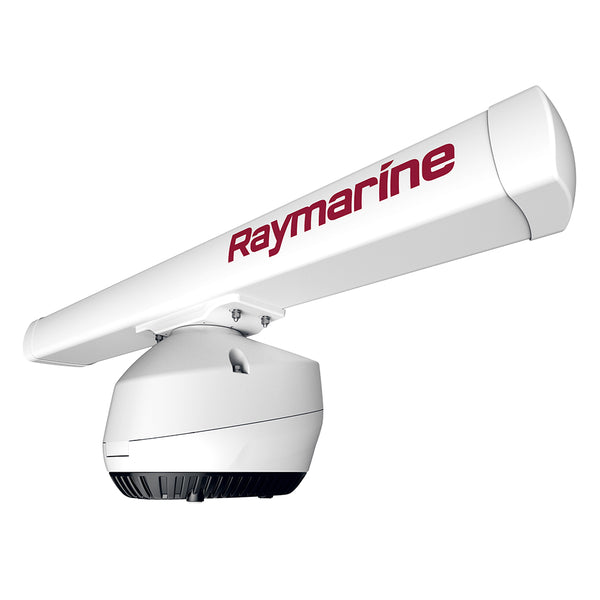

Raymarine 12kW Magnum with 4' Array & 15M RayNet Radar Cable

Raymarine

SKU#

  • $6,999.99
    Unit price per
Free Shipping
In Stock
Out of Stock
Will not ship until

Description

Magnum 12kW 4' Open Array Radar with 49' Cable (T70412) by Raymarine®. Magnum high performance open array radars bring long range performance and unmatched small target radar imaging to Raymarine multifunction navigation displays. Employing many of the same radar technologies trusted by the United States Coast Guard, Magnum offers enhanced target tracking and reliable performance, all packaged in a sleek open-array pedestal built to withstand the elements. Magnum is ideal for blue water vessels. The perfect companion to Raymarine’s award-winning Axiom® and Axiom Pro multifunction navigation displays (MFD) running LightHouse 3, Magnum is also backwards compatible with legacy models including: a, c, e, eS, gS, G Series MFDs (Not all Magnum features are available on all legacy MFDs).

Features

  • Superior Bird Mode
  • Enhanced Radar Imaging
  • Best in Class Target Tracking
  • True Trails
  • Real Time Heading Updates

Specifications:

  • Antenna Size: ~4' 4" (1.31m)
  • Max Range Scale: 96 nautical miles
  • Scanner Weight (Pedestal + Antenna): 57.3 lbs (26kg)
  • Beam Width Vertical -3dB: 25°
  • Antenna Side Lobes (Outside 10°): < -30dB
  • Pulse Length/PRF Settings: 8
  • Number of Displayed Video Levels: 256 (8-bit)
  • Real-Time Heading Refresh (with Heading Sensor): Yes
  • True Trails (with Heading Sensor): Yes
  • Waterproofing Standard: IPX6

Includes

  • Pedestal
  • Antenna
  • Mounting template
  • Denso paste
  • Lifting sling
  • 4 x Stud
  • 4 x Threaded alignment guide
  • 12 x Nut
  • Cable tightening tool
  • 15m Radar-to-'RayNet & power' cable
  • 2 x VCM100 mounting screw
  • 3 x VCM100 cable clamp mounting screw
  • VCM100 Voltage Converter Module
  • VCM100 cable clamp
