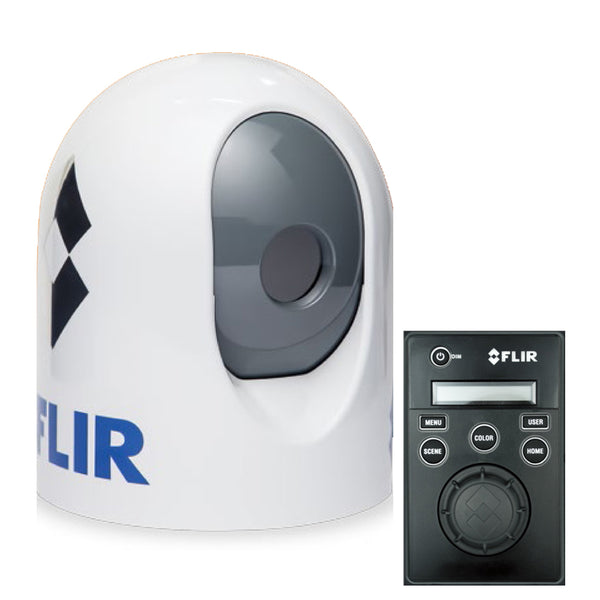

FLIR MD-625 Static Thermal Night Vision Camera with Joystick Control Unit

Description

MD-Series MD625 Standard Image Thermal Camera with Joystick Control Unit (432-0010-13-00) by FLIR®. This affordable, fixed-mount thermal night vision system helps with steering around obstacles, collision avoidance and finding people in the water at night. Simple to mount and easy to integrate into your existing electronics, MD-Series’ display can be mounted separately on your dashboard, or the feed can be integrated into an existing display to save space. Use a single application to control all of your FLIR Thermal imaging, night vision, and infrared cameras from your iPad or iPhone. The app allows for intuitive control with natural gestures.

Features

• E-zoom
• Ethernet-enabled for simple integration into your current electronics
• Slim profile (7" high and only three pounds) makes for an unobtrusive mount

Specifications

• Detector Type: 640 x 480 VOx Microbolometer
• FOV: 25° x 20° (NTSC)
• Focal Length: 25 mm
• E-zoom: 2x, 4x
• Image Processing: FLIR Proprietary Digital Detail Enhancement
• Size: 6" dia. x 7" ht
• Weight: ~ 3 lbs
• Pan/Tilt Coverage: Pan: ±30° per key
• Tilt: +34°, -27° (Locked in at Installation), 30 Hz or <9Hz
• Connector Types: F-type
• Power Requirements: PoE injector required per IEEE 802.3af
• Power Consumption: 4.8 W nominal; 12.5 W max
• Operating Temperature Range: -25°C to +55°C
• Sand/Dust: Mil-Std-810E
• Water Ingress: IPX6
• Shock: 15 g vertical, 9 g horizontal
• Vibration: IEC 60945; MIL-STD-810E
• Lightening Protection: Standard
• Salt Mist: IEC60945
• Wind: 100 knot (115.2 mph)
• EMI: IEC 60945

Includes

• Camera Head with ~5" of Cable Analog Video, and Ethernet (PoE powered device)
• BNC with BNC-to-RCA adapter for video out
• Operator Manual CD
• Joystick Control Unit
