Description

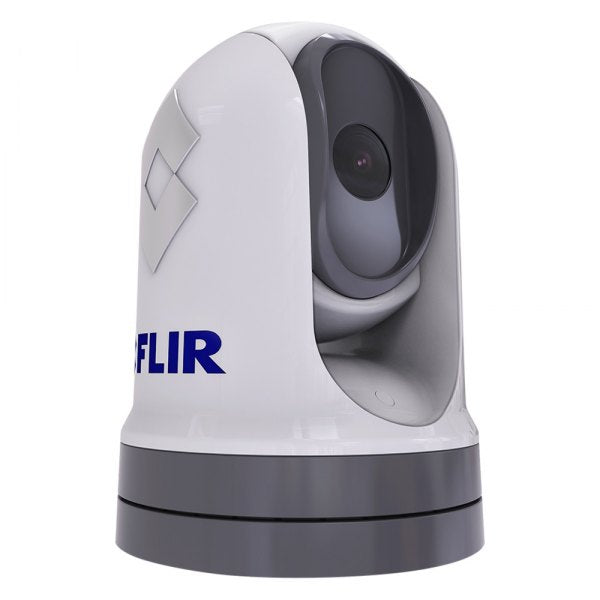

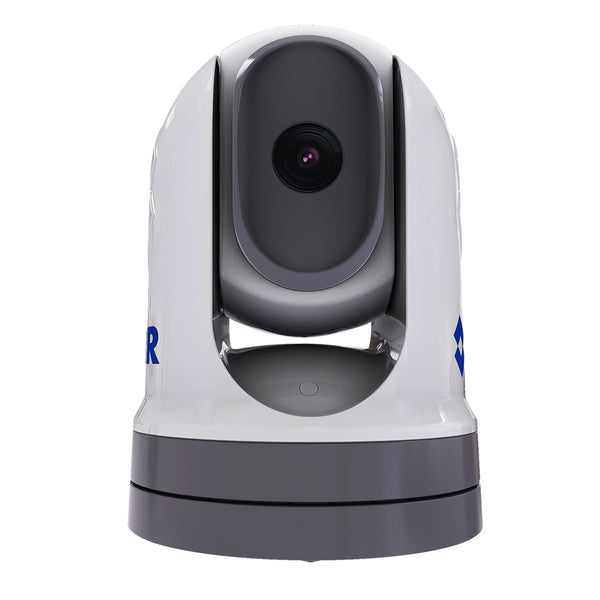

M364 Standard Image Thermal Camera (E70525) by FLIR®. Pairing a rugged, all-weather design with one of the most advanced FLIR thermal imaging cores, the M364 delivers awareness-enhancing thermal vision for law enforcement, commercial, and recreational applications. Advanced gyro-stabilization and high-performance thermal imaging detect obstacles and targets in complete darkness and heavy seas, allowing safe navigation in the most challenging conditions.
Features
- Thermal imaging offers vision in complete darkness, glare, and light fog
- Two-axis mechanical stabilization virtually eliminates the effects of pitch, heave, and yaw
- Exceptional connectivity with navigation and security systems
Specifications
- Detector Type: 640 x 512 VOx Microbolometer
- Field of View: 24° x 18°
- Image Processing: FLIR Proprietary Digital Detail Enhancement
- HD-SDI Lossless Video Output: Yes
- Network Video Output: Single H.264 Network Video Stream
- Pan & Tilt Adjustment Range: 360° Continuous Pan, +/- 90° Tilt
- Pan/Tilt: Yes
- Analog Video Output: NTSC
- Analog Video Connector Types: BNC
- Automatic Window Defrost: Standard at Power-Up
- EMI: IEC60945
- Lightning Protection: Standard
- Operating Temperature Range: -13°F to +131°F (-25°C to +55°C)
- Salt Mist: IEC60945
- Shock: 15g vertical, 9g horizontal
- Storage Temperature Range: -30°F to +158°F (-30°C to +70°C)
- Vibration: IEC60945
- Water Ingress: IPX6 (heavy seas, power jets of water)
- Wind: 100 knots (115.2 MPH)
- Sand & Dust Ingress: Mil-Std-810E or IP6X
- Focus: Fixed 12ft (3m) to infinity
- Continuous E-Zoom: 8x
- Focal Length - Thermal: 18mm
- Video Refresh Rate - Thermal: 30 Hz
