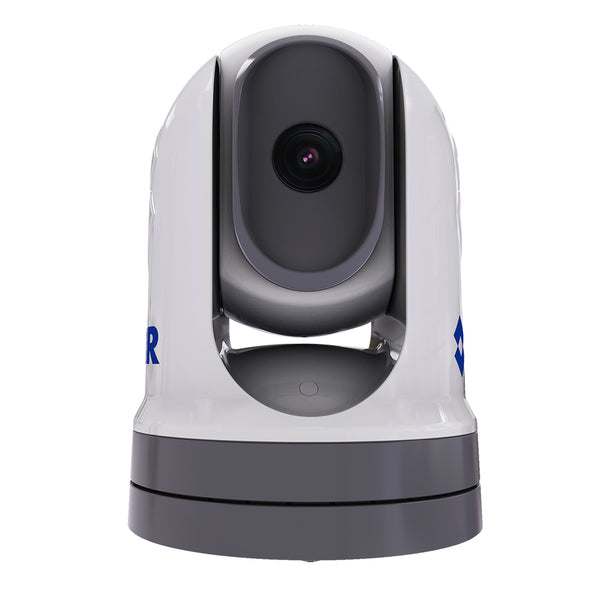

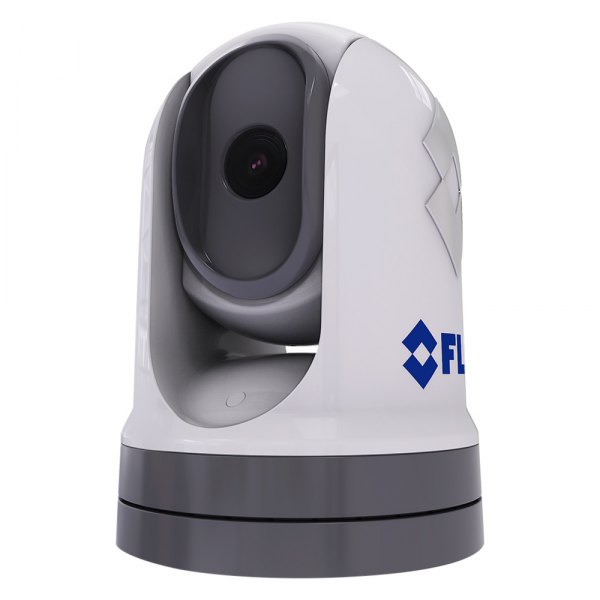

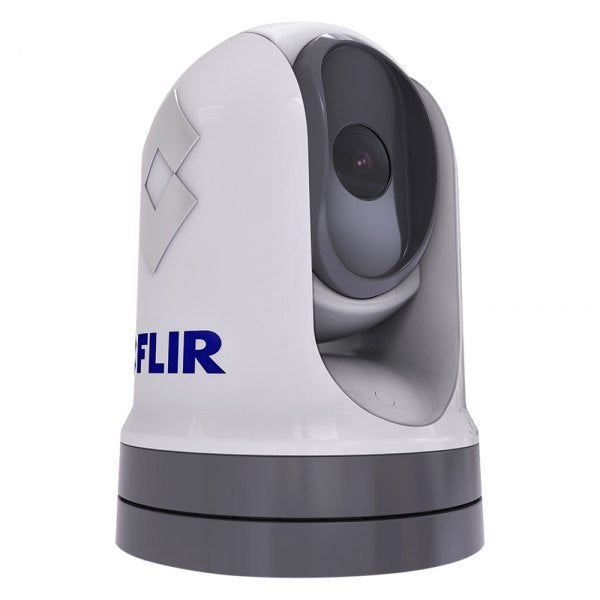

FLIR M332 Stabilized Thermal IP Camera Thermal Camera

Description

M332 Standard Image Thermal Camera (E70527) by FLIR®. Pairing a rugged, all-weather design with one of the most advanced FLIR thermal imaging cores, the M332 delivers awareness-enhancing thermal vision for law enforcement, commercial, and recreational applications. Advanced gyro-stabilization and high-performance thermal imaging detect obstacles and targets in complete darkness and heavy seas, allowing safe navigation in the most challenging conditions.

Features

• Thermal imaging offers vision in complete darkness, glare, and light fog
• Two-axis mechanical stabilization virtually eliminates the effects of pitch, heave, and yaw
• Exceptional connectivity with navigation and security systems

Specifications

• Detector Type: 320 x 256 VOx Microbolometer
• Field of View: 24° x 18°
• Image Processing: FLIR Proprietary Digital Detail Enhancement
• HD-SDI Lossless Video Output: Yes
• Network Video Output: Single H.264 Network Video Stream
• Pan & Tilt Adjustment Range: 360° Continuous Pan, +/- 90° Tilt
• Pan/Tilt: Yes
• Analog Video Output: NTSC/PAL User Settable
• Analog Video Connector Types: BNC
• Automatic Window Defrost: Standard at Power-Up
• EMI: IEC60945
• Lightning Protection: Standard
• Operating Temperature Range: -13°F to +131°F (-25°C to +55°C)
• Salt Mist: IEC60945
• Shock: 15g vertical, 9g horizontal
• Storage Temperature Range: -30°F to +158°F (-30°C to +70°C)
• Vibration: IEC60945
• Water Ingress: IPX6 (heavy seas, power jets of water)
• Wind: 100 knots (115.2 MPH)
• Sand & Dust Ingress: Mil-Std-810E or IP6X
• Focus: Fixed 12ft (3m) to infinity
• Continuous E-Zoom: 4x
• Focal Length - Thermal: 9.1mm
• Video Refresh Rate - Thermal: 30 Hz
