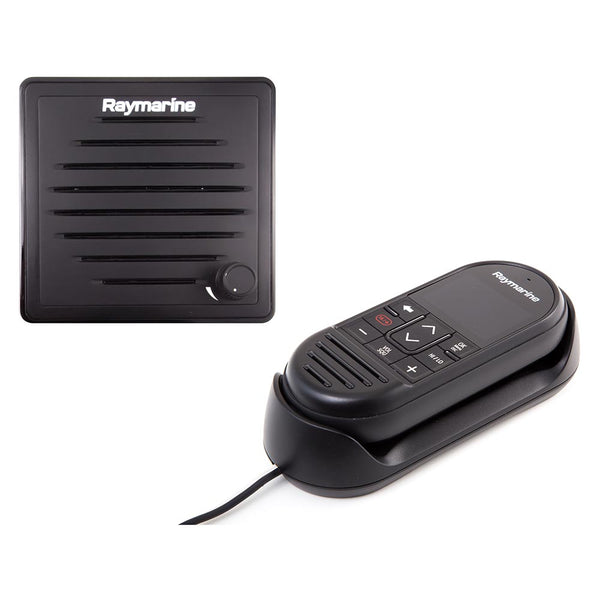

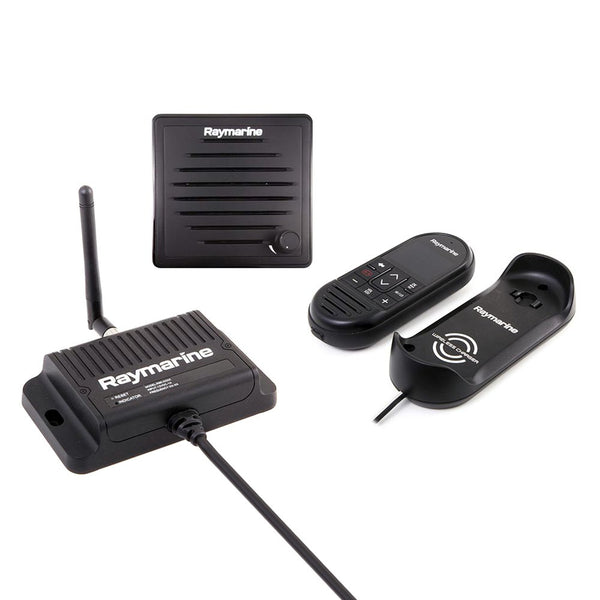

Raymarine Ray90 Wireless Second Station Kit with Active Speaker & Wireless Handset

Description

Ray90 Black Fixed Mount Wireless VHF Radio with GPS by Raymarine. Raymarine's fixed mount Ray90 modular VHF radio brings multi-station communications to a whole new level of power, performance, and flexibility. The Ray90 is a black-box design with a transceiver that hides out of sight while the ergonomic RayMic handset and remote speaker provide full control of the radio with crystal clear audio.

Features

• Black box, multi-station capable VHF radio
• NEW - Wireless handset and active speaker available
• Wired handset and passive speaker included
• Expandable to 2 handsets
• Built-in loudhailer and fog signal generator
• Optional external GPS
• Simple NMEA2000 and NMEA0183 Networking

Specifications

• Operating Temperature Range: -25°C to 55°C
• Storage Temperature Range: -25°C to 70°C
• Humidity: up to 95%
• Operating Voltage Range: 9VDC to 16VDC
• Current Consumption: Less than 6A at High Power (13.6V)
• Standby: 600 mA
• Receive: 2 Amps
• Frequency Stability: + / - 1.5 ppm
• Channel Spacing: 12.5 kHz
• Maximum Deviation: +/- 5kHz
• Antenna port impedance: 50 ohms typical
• Receiver Type: Double Conversion Super Heterodyne
• Wireless Frequency: 2.4GHz: 2.4GHz:
• Audio Distortion: Less than 10%
• External Passive Speaker Power: 5W (4Ohms) / 2.5W (8Ohms) (Passive)
• Hailer Speaker Power Output: 24W (4Ohms) / 12W (8Ohms)

Includes

• Wireless Handset
• Active Speaker
• Wireless Handset Holster/Charger
• Raymic handset
• Documentation (warranty card x1, serial number labels x2, installation
• template / guide)
• Holster mounting screws x3

Notes

• Drilling required
• GA150 antenna is required for GPS Receiver
